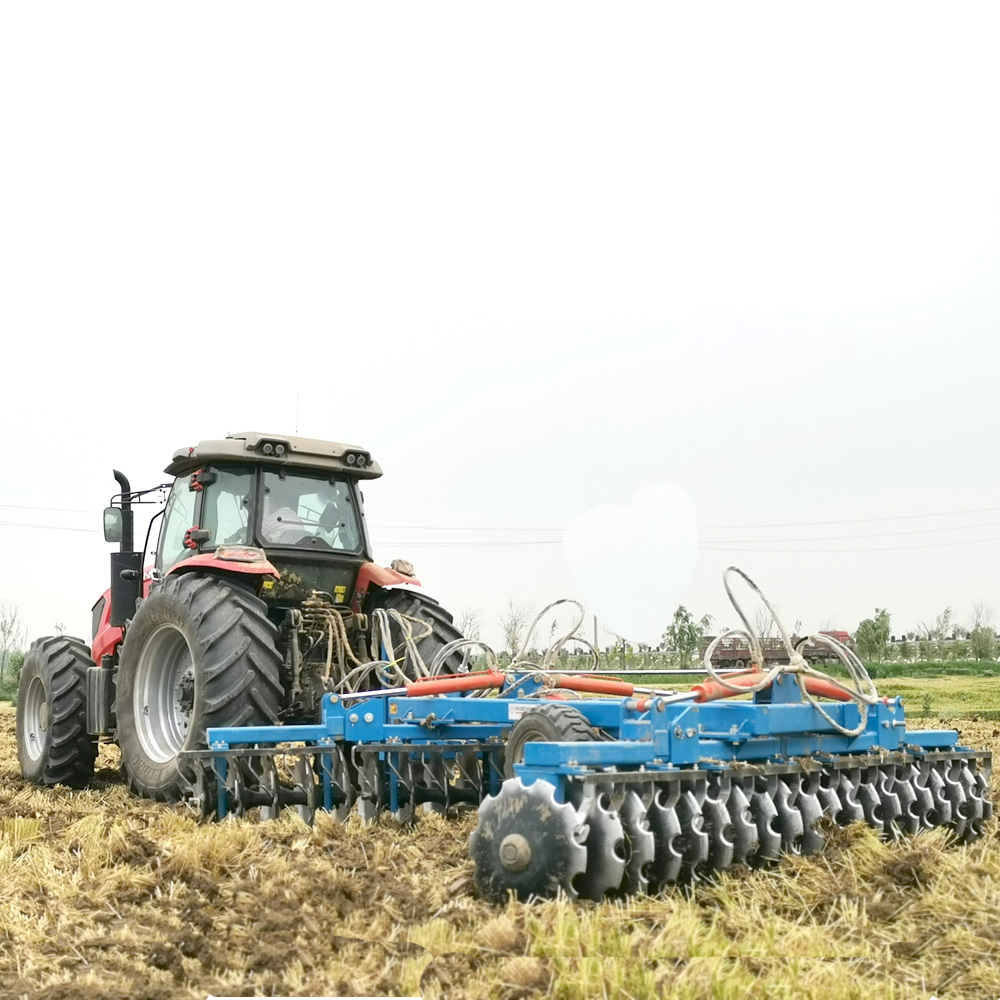

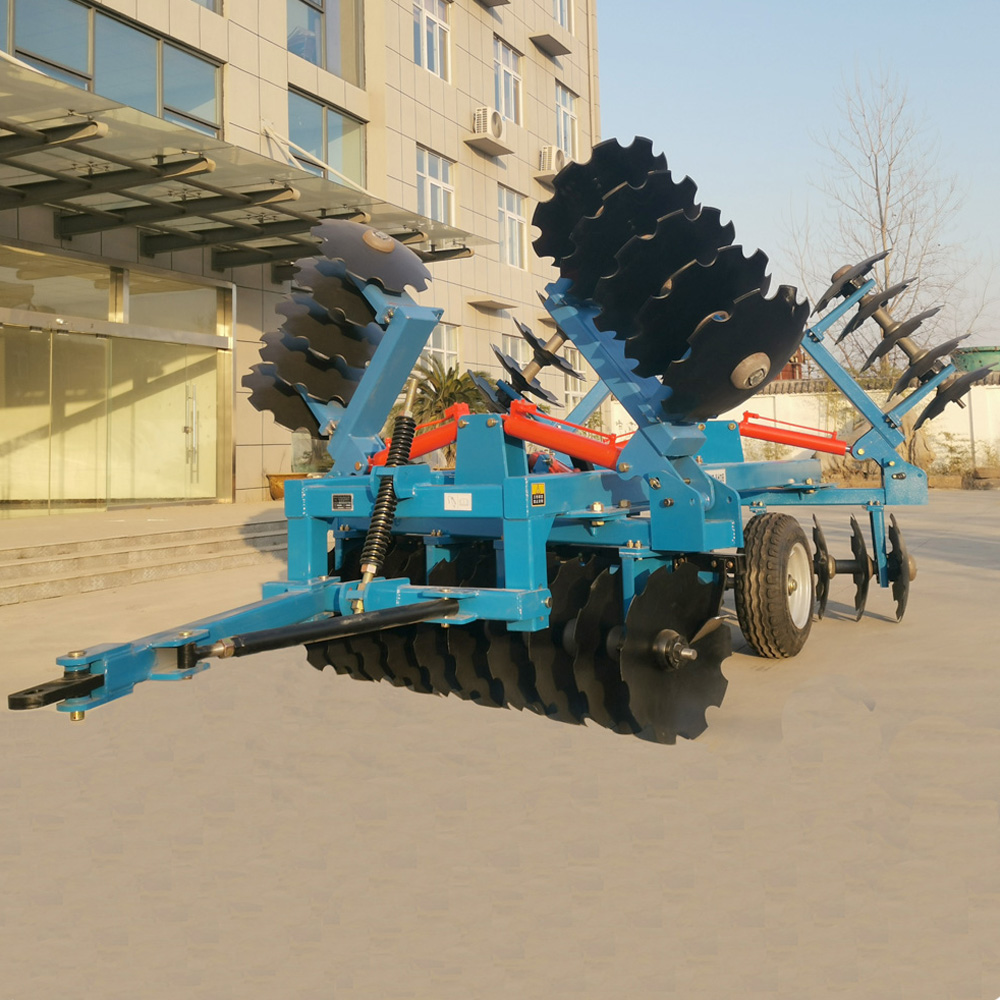

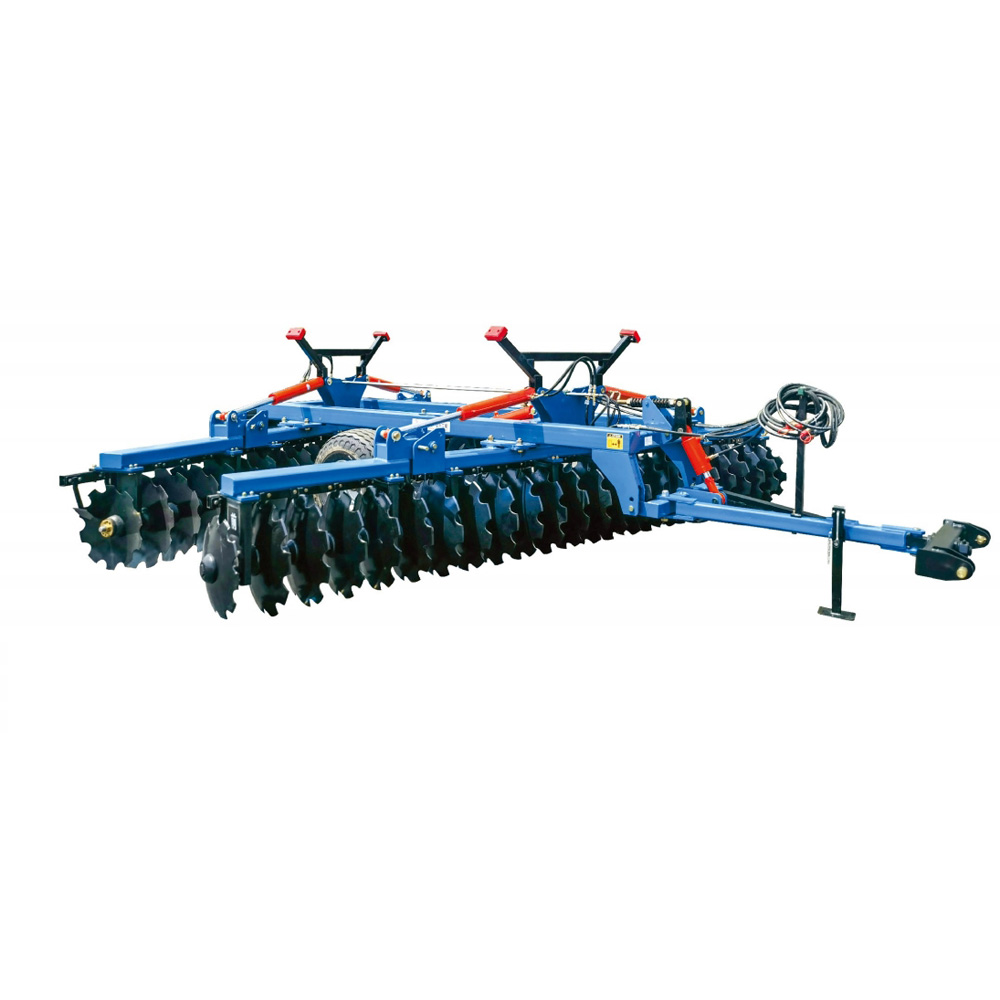

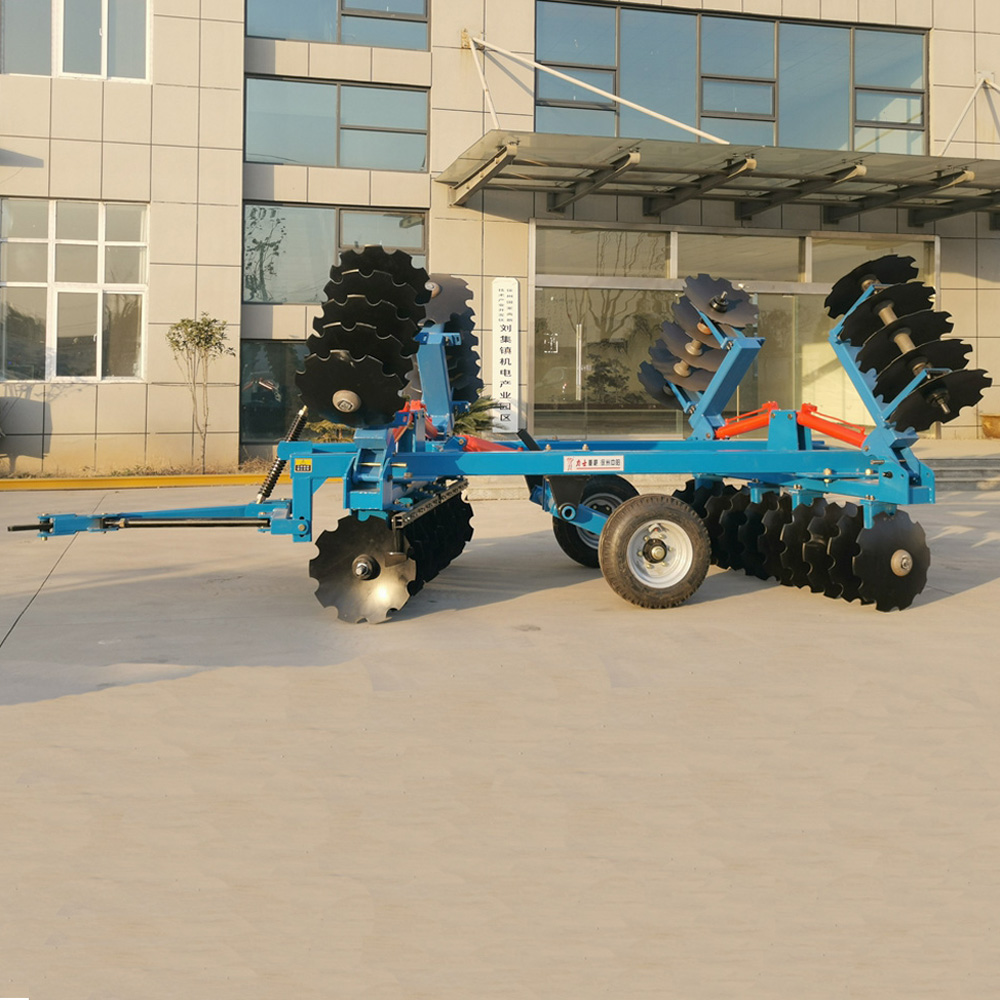

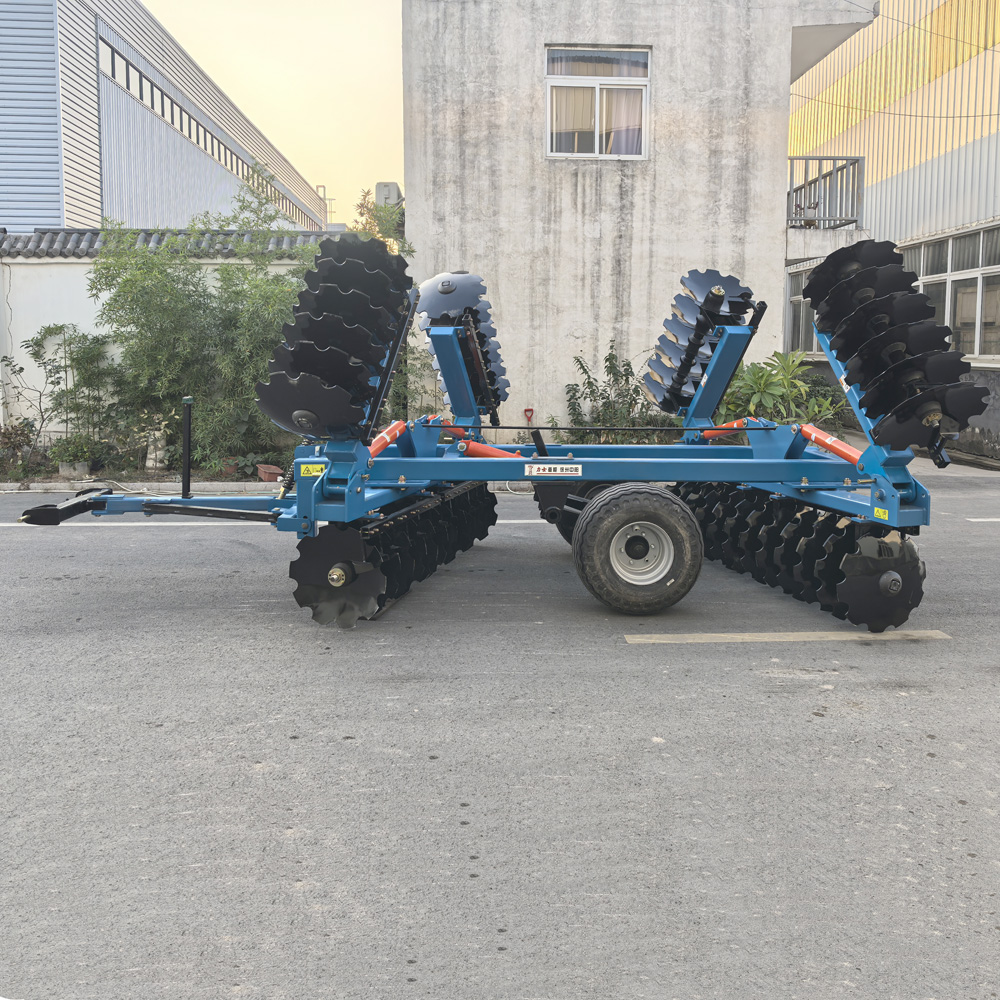

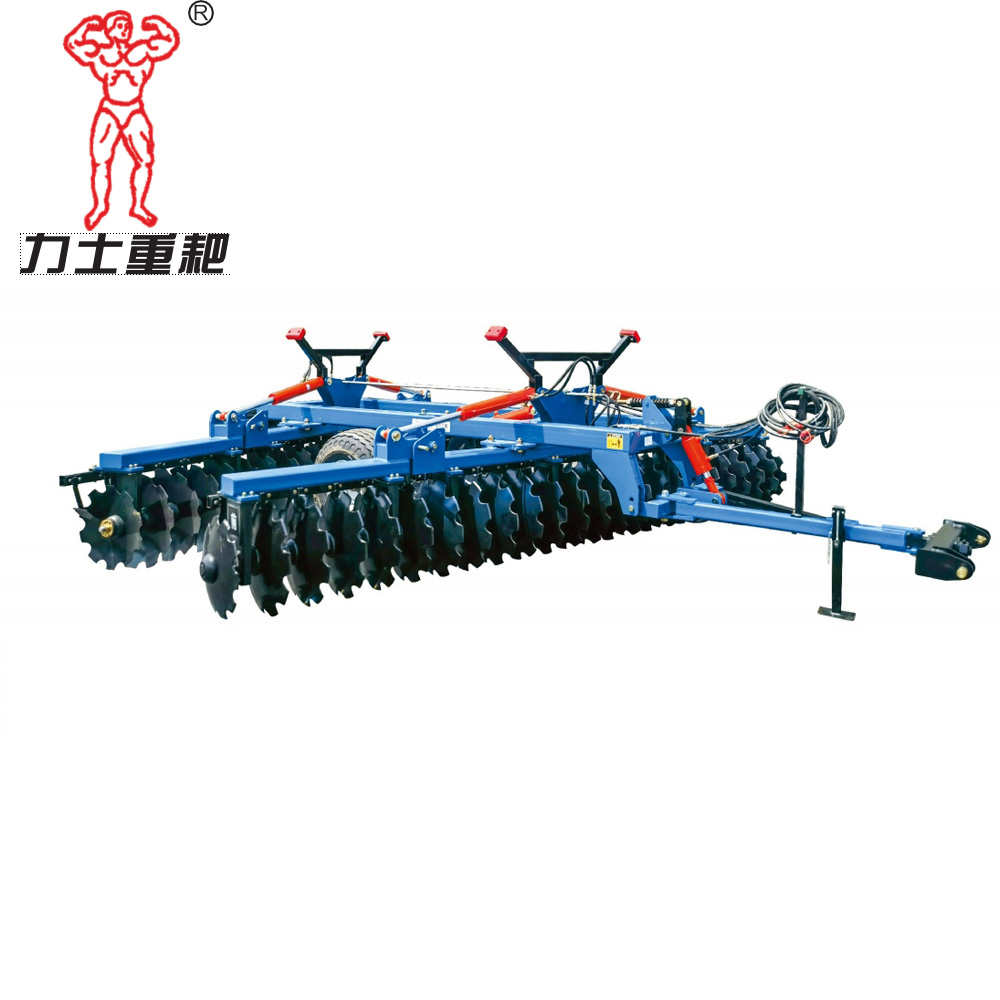

1BZ-5.0 hydraulic Folding heavy disc harrow

1BZ-5.0m heavy-duty offset dics harrow Working Width : 5m , Working Depth : 20cm , Discs No : 44 pcs , Disc diameter : 660mm ,  Overall weight : 3800kg     matched power is 180-200hp 1BZ series heavy-duty offset dics harrow are all fitted with hydraulic rubber wheel for transportation. It is easy to be transported and change direction on the edge of fields. this heavy disc harrow are mainly used for cleaning away stuble of plants before tillage, or crushing clods after tillage on uncultivated land and in sticky heavy clay soil fields. They can also be used as a plough for primary tillage in dry cultivated fields.On the cultivated land, it can be used as the plough for the initial cultivation, however on the uncultivated land, the first harrowing depth can be up to 180mm. After harrowing, the land surface is smooth, the soil clods and crop residues are well crushed. It is easy to be mounted and adjusted, free to reverse, and convenient for transportation.   We have disc harrow, joint ti…
