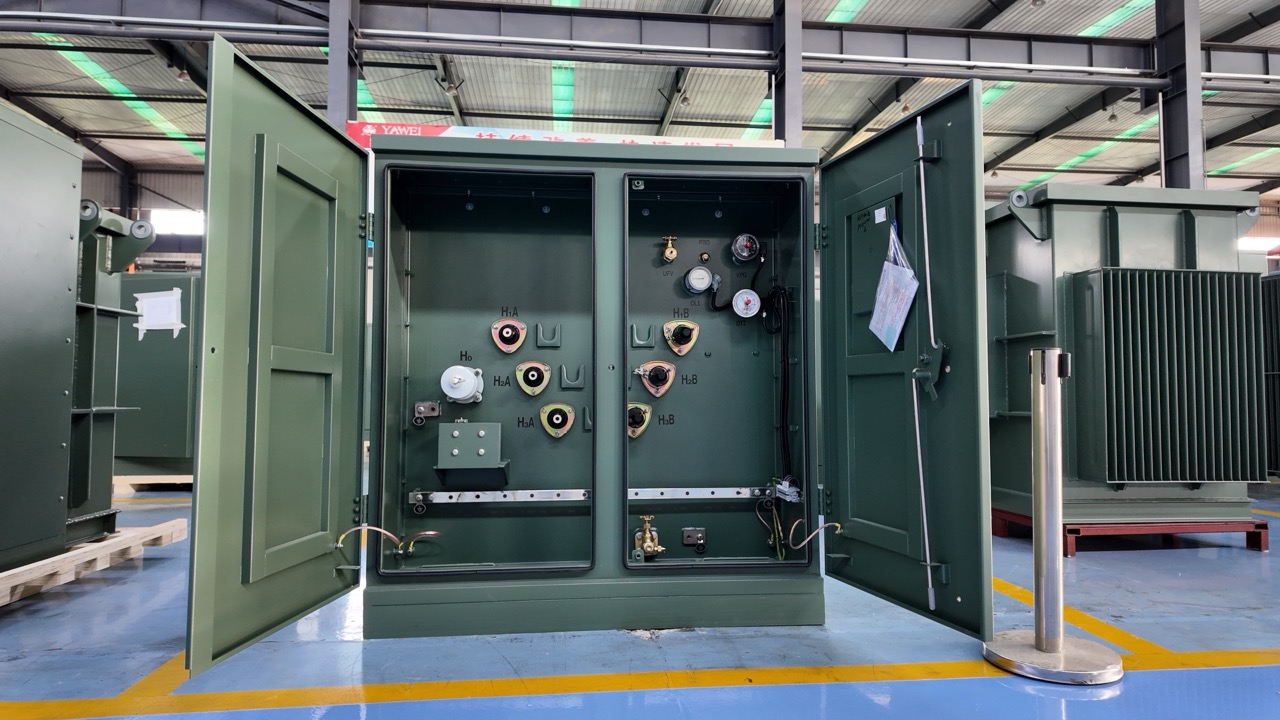

200 kVA Three Phase Pad Mount Transformer

Product Specifications   Rating 200 KVA No. of Phases 3 Winding Configuration Delta – Wye / Wye – Wye/ Delta – Delta/ Wye – Delta Vector Group As per requirement Tapping Range ±2 x 2.5%/As per requirement Winding Material Copper / Aluminum Core Material Grain Oriented Silicon Steel Sheet Impedance 3-5.75 % Oil Temperature Rise 55 °C Winding Temperature Rise 65 °C Tap Changer Off-Load Tap Changer IEEE Standards IEEE C57.12.00 Certification UL Listed Efficiency DOE 2016 Transformer Characteristics This 200 kVA pad-mounted transformer offers single-phase and three-phase configurations, with primary side rated voltages ranging from 2,400 to 46,000 volts and secondary side voltages from 208Y/120 volts to 14,400 volts. Its core employs a laminated structure of cold-rolled silicon steel sheets, utilizing advanced manufacturing techniques. The transformer features high energy efficiency with low heat generation, thereby reducing cooling requirements. The equip…
