35kV high voltage switchgear

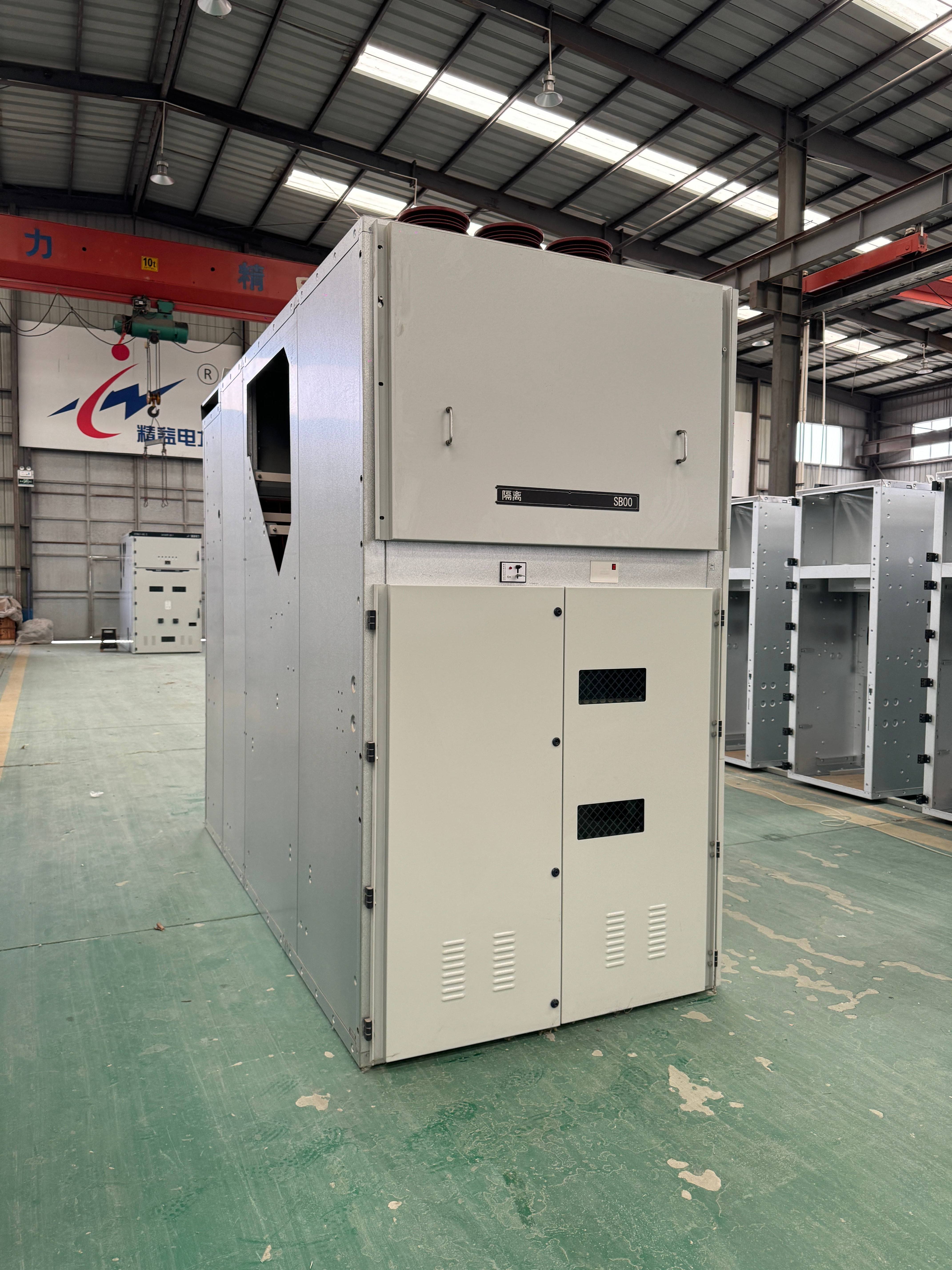

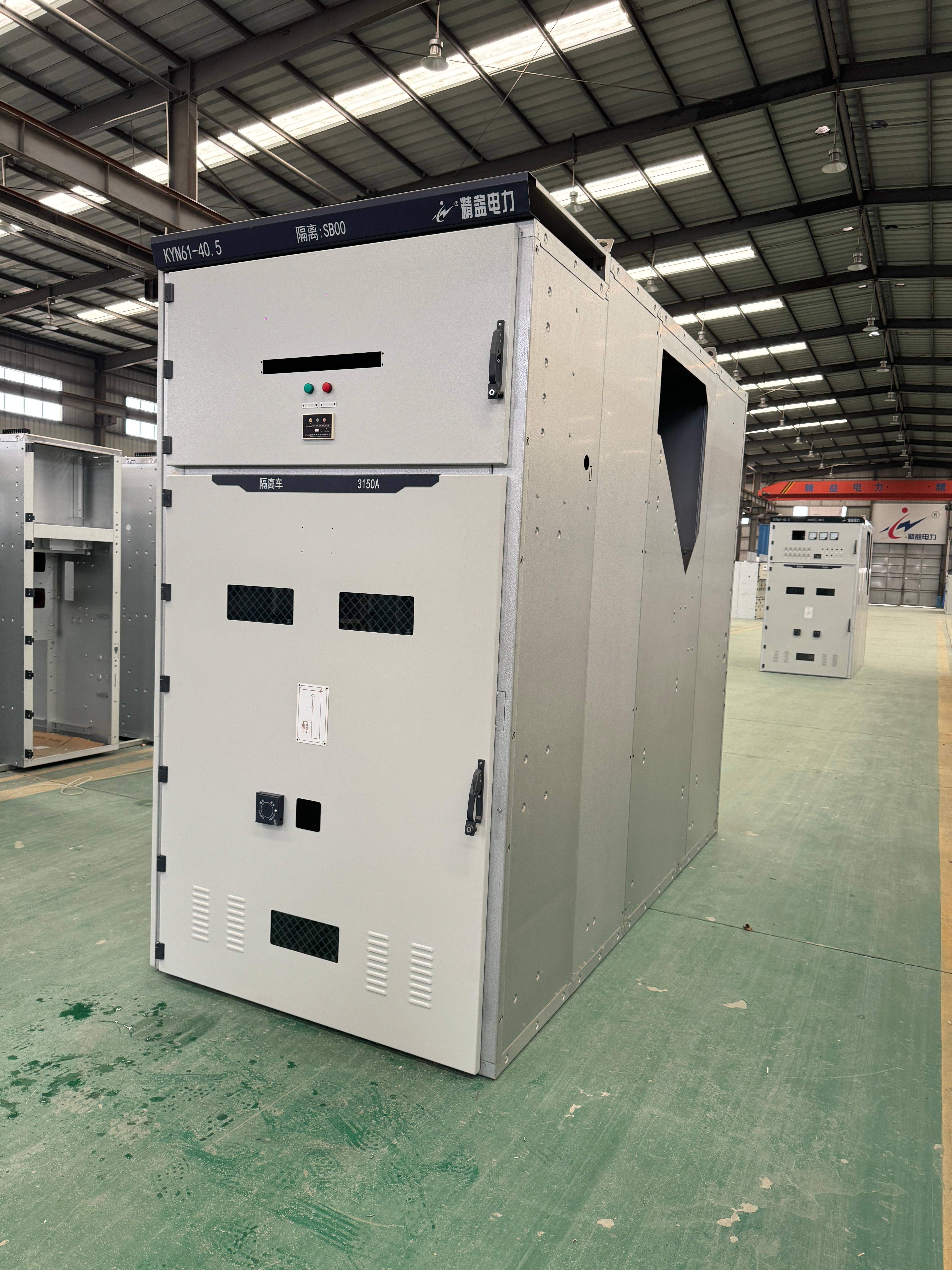

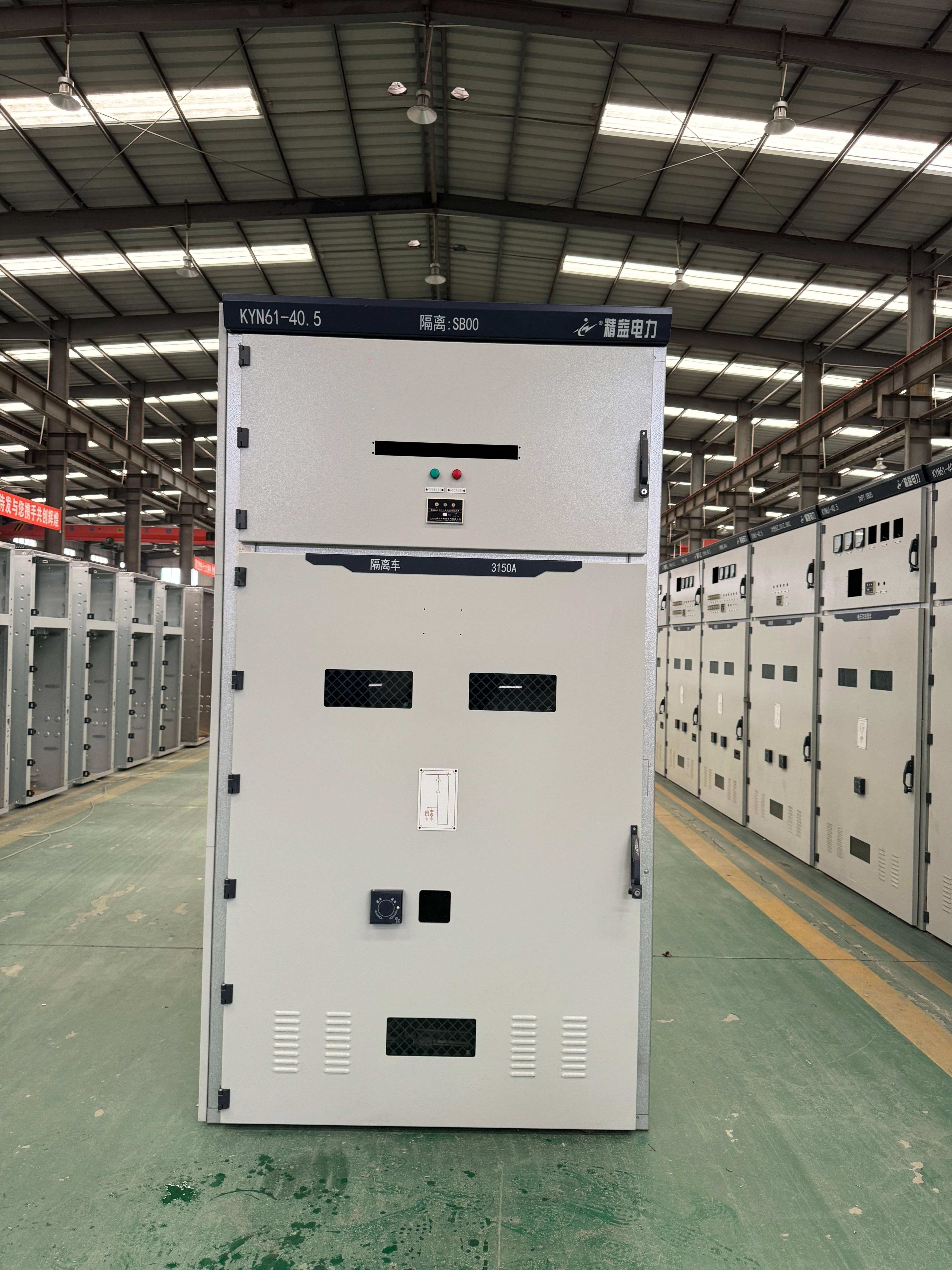

35kV High Voltage Switchgear (KYN61-40.5) High Voltage Switchgear is the critical backbone of power infrastructure, and the KYN61-40.5 represents the pinnacle of indoor, metal-enclosed, armored switchgear technology. Engineered for 50Hz three-phase systems with a rated voltage of 40.5kV, this equipment is indispensable for power plants, substations, and large industrial mining enterprises. It excels in receiving, distributing, controlling, and protecting electrical energy, even in environments requiring frequent operations. By integrating a state-of-the-art vacuum circuit breaker with a robust, assembled structure, this unit ensures maximum reliability for modern HV Power Systems. Technical Specifications Model: KYN61-40.5 (Armored Removable AC Metal-enclosed Switchgear) Rated Voltage: 40.5 kV Rated Current Range: 630A - 2500A Rated Frequency: 50Hz / 60Hz Rated Short-Circuit Breaking Current: 25kA / 31.5kA Rated Peak Withstand Current: 63kA / 80kA Rated Short-Time Withstand Current…
