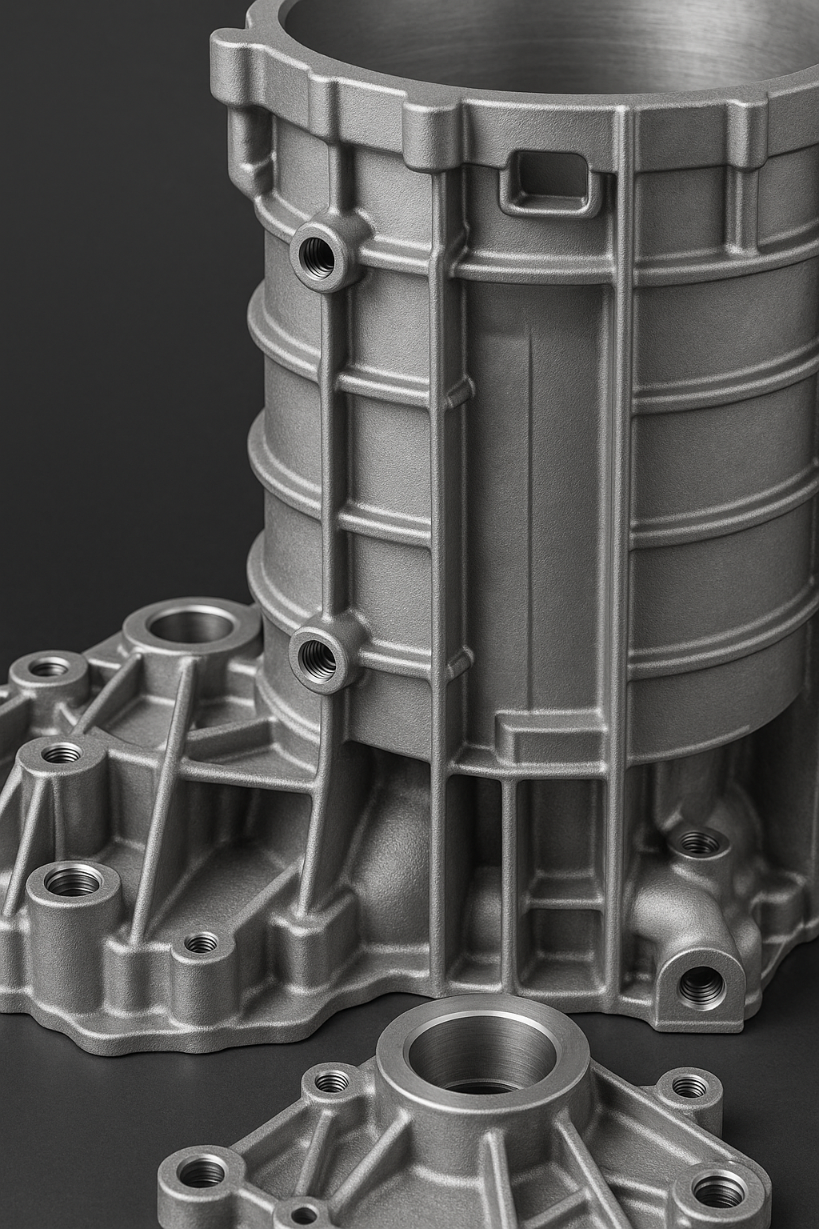

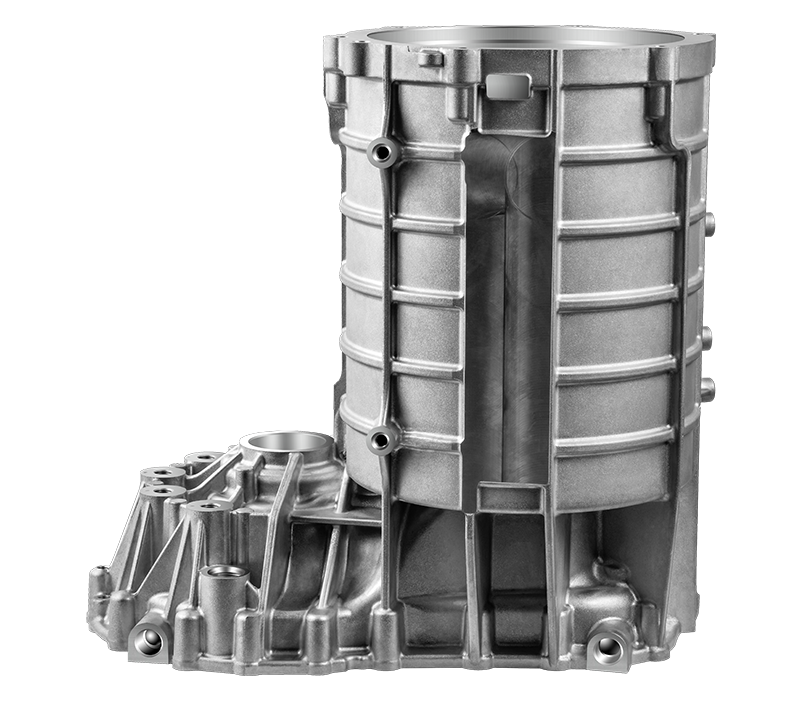

Aluminium gravity die casting for Motor Housing

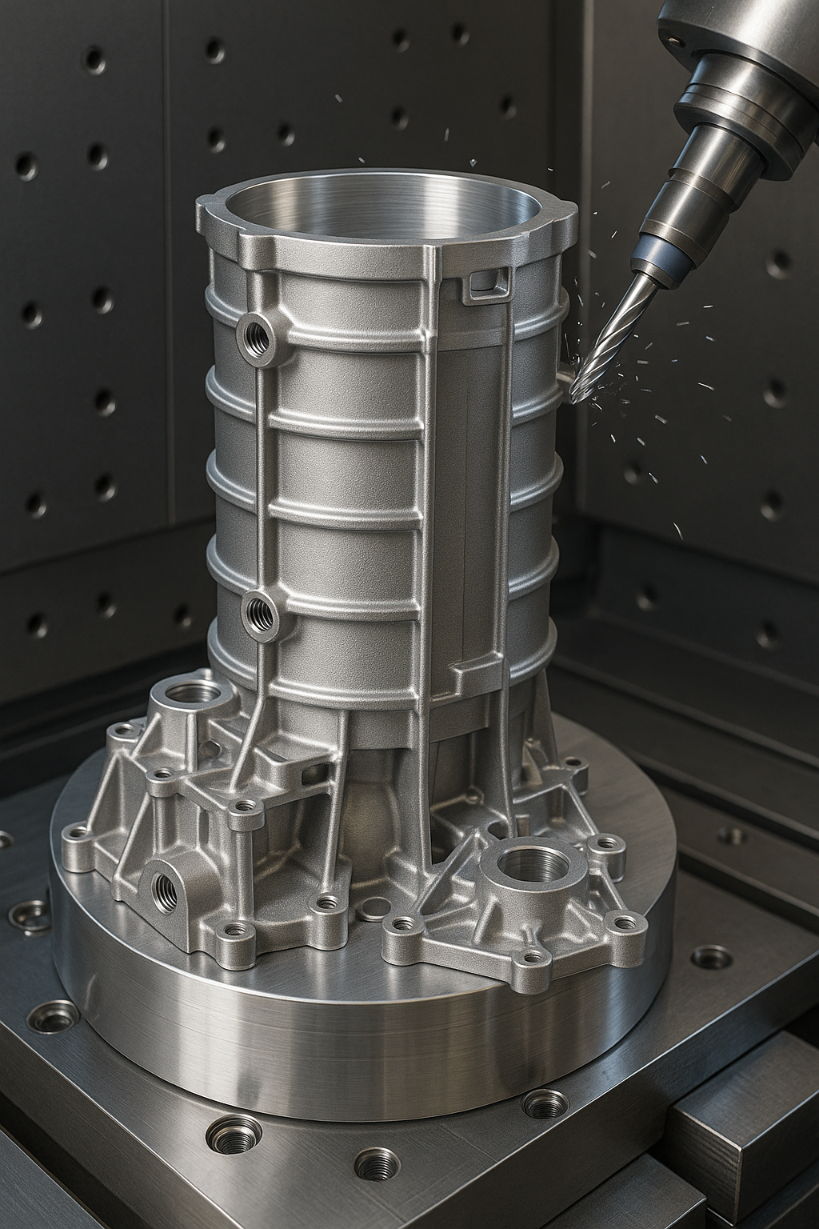

We provide high-pressure die casting (HPDC) manufacturing of complex housings, including motor housings, gearbox housings, structural components, etc. Using aluminum alloy materials such as ADC12 and A380, combined with five-axis CNC finishing, we achieve IT6 precision for bearing holes and a flatness of 0.05mm for key surfaces. We can provide post-treatments such as sandblasting, anodizing, and impregnation, as well as 100% coordinate measuring machine inspection, to meet the high-reliability application requirements of automotive, aerospace, industrial equipment and other fields.         Manufacturing Process: HPDC – High Pressure Die Casting,  • The mold is made of H13/8407 hot work die steel • Clamping force can reach 800–2000T, depending on the size of the shell • One-time forming of overall complex structures, reinforcing ribs, deep cavities, mounting posts, etc. • Internal runners/cavities are formed by core pulling and sliding blocks 2. Subsequent precision machining (CNC…
