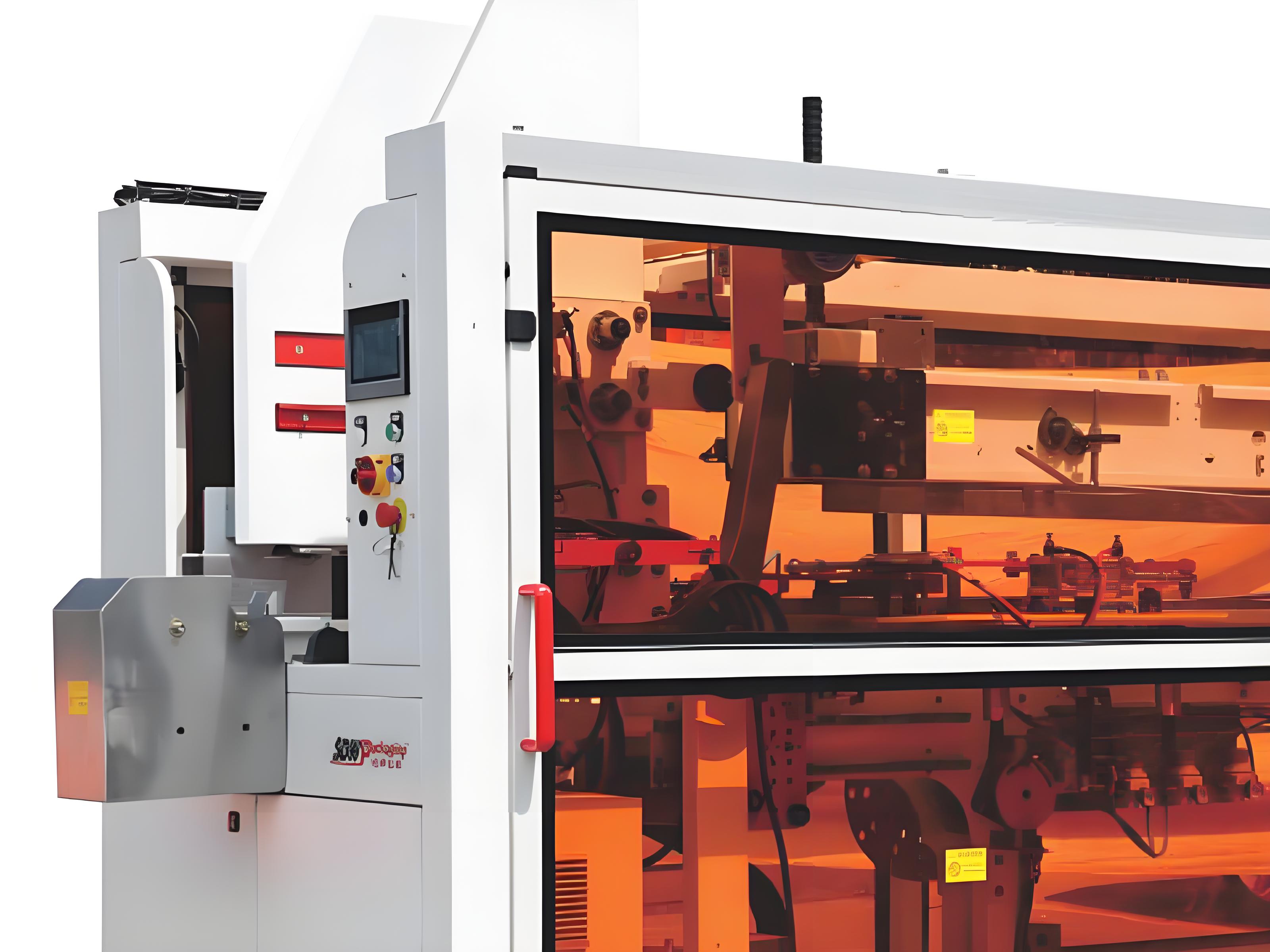

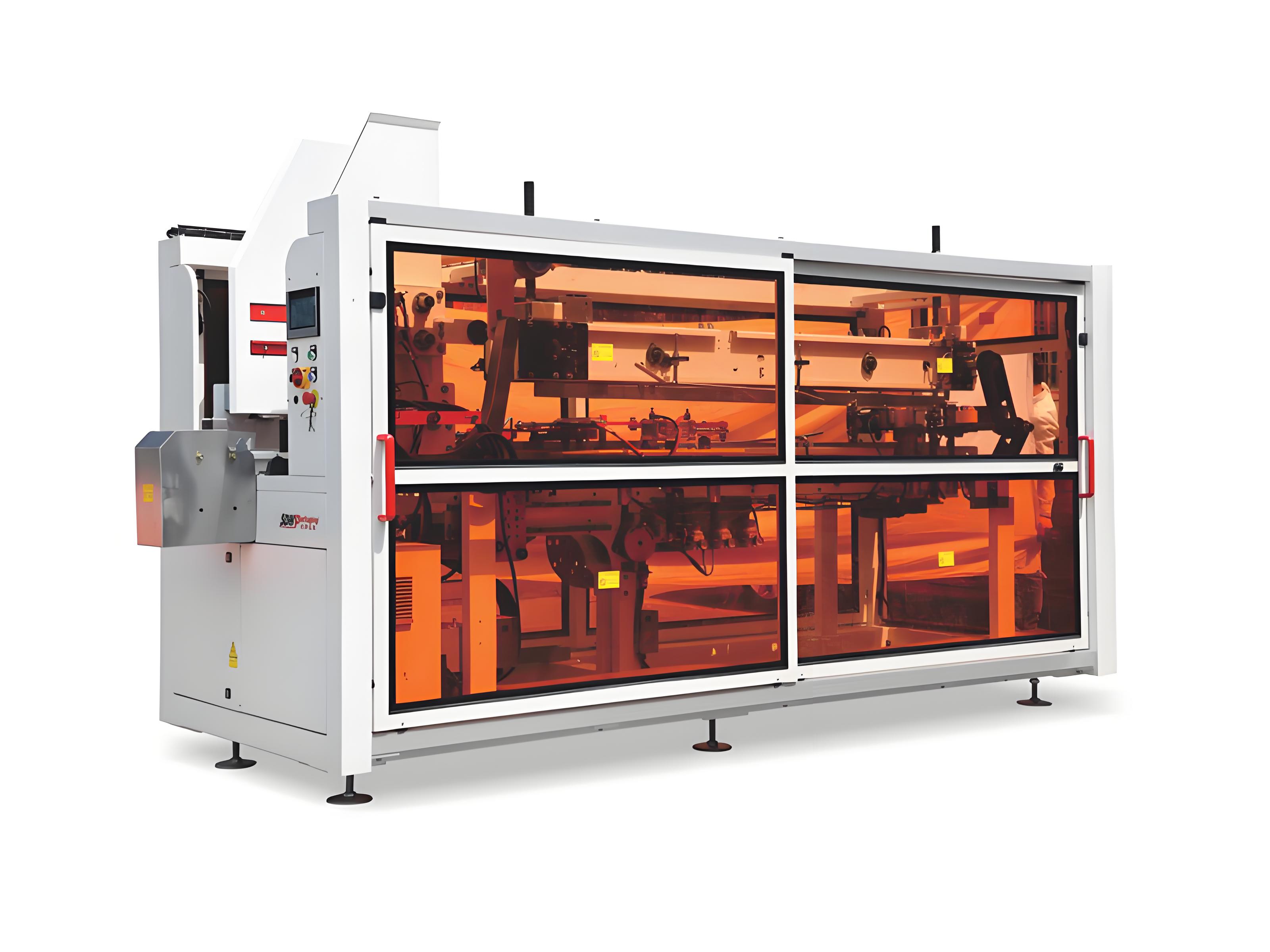

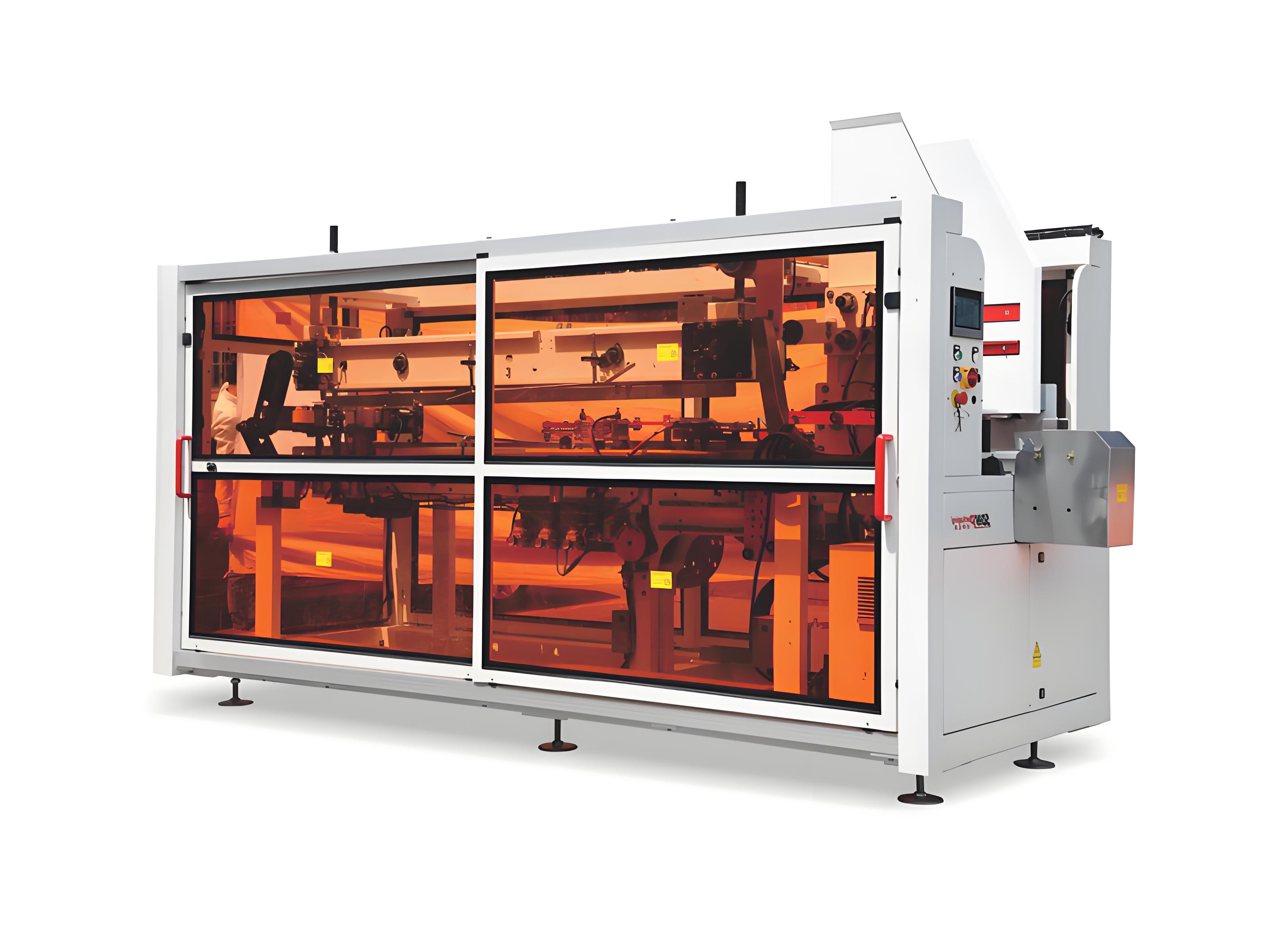

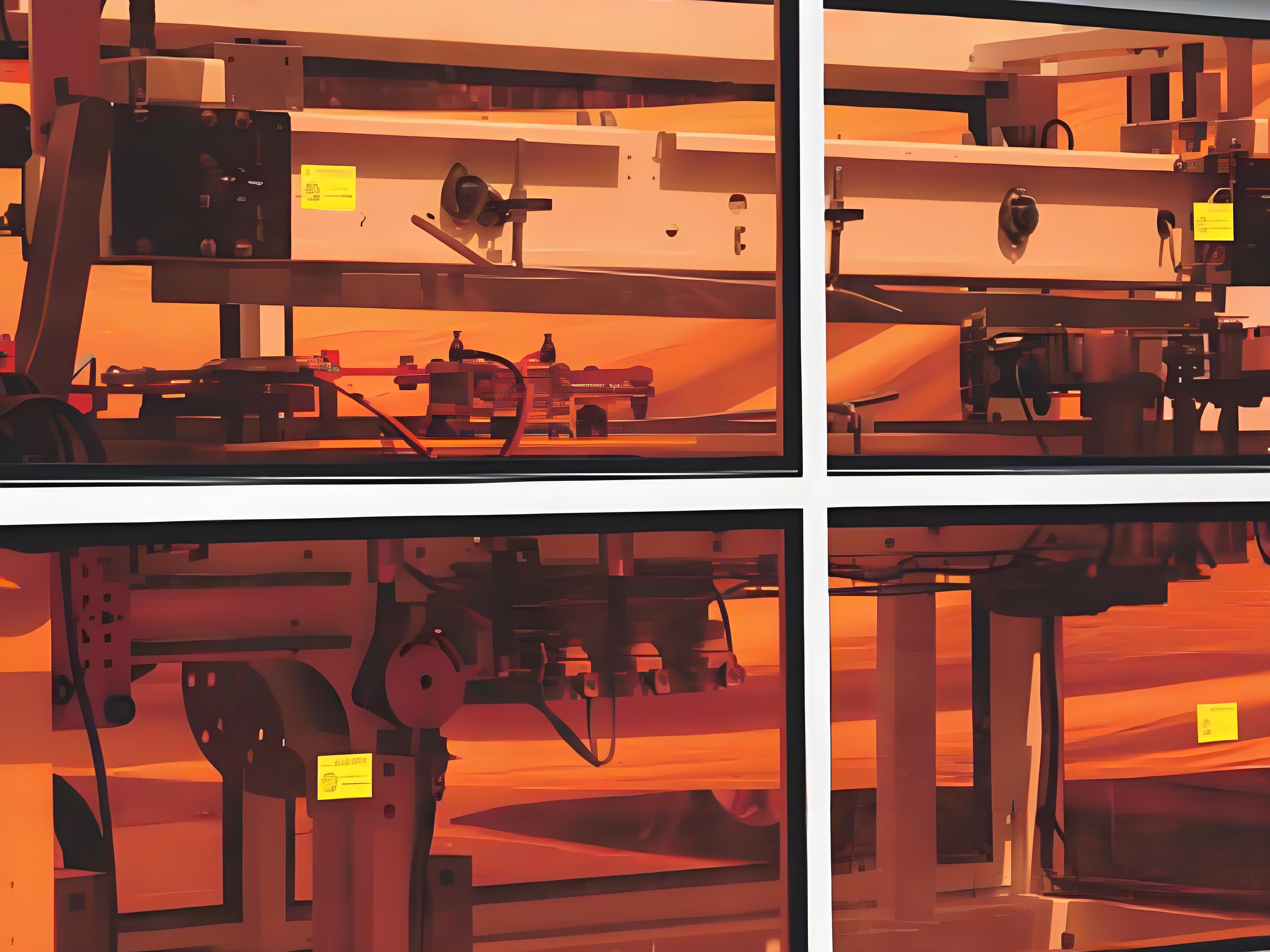

Automatic High-Speed Case Erector

The Automatic High-Speed Case Erector can quickly and accurately complete the entire process of suction, forming, bottom folding, and sealing of cartons, significantly improving packaging efficiency and stability. It is widely applicable to industries such as food, beverage, pharmaceuticals, daily chemicals, electronics, and e-commerce logistics, meeting the demands of large-scale, high-tempo packaging operations. Technical Parameters of Erector Machine Applicable Power Supply: 3P AC380V, 50Hz, 2.5KW Compressed Air Pressure: 0.4–0.6 MPa Air Consumption: 30 m³/h External Dimensions: L3500 × W1500 × H2200 mm Adjustment Range:  Width W: 190–280 mm  Length + Width (L+W): 400–690 mm  1/2 Width + Height (1/2W+H): 220–420 mm(Customizable) Table Height: 1000 mm ± 50 mm Machine Weight: 2000 kg Operating Speed: 35, 40, 45, 50 cases/minute (configurable based on model selection) Forming and Sealing Method: Bottom sealing with adhesive tape, suitable for laminated cartons, oil-coated cartons, e…
