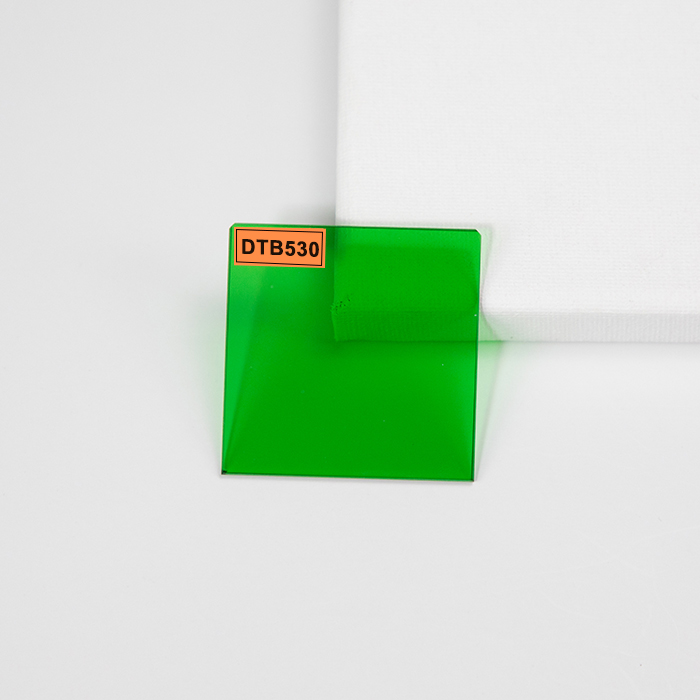

Bandpass filter glass DBT530

The bandpass filter glass DBT530 is an optical component used for filtering specific wavelength (around 530nm) optical signals. Its technical parameters and application characteristics are as follows:(Bandpass Filter Optical Glass,Laser rangefinder optical glass,Security monitoring optical filter,) 1. Core parameters Center wavelength: 530nm (± 2nm) Half peak bandwidth: 10nm (customizable) Peak transmittance:>90% (adjustable) Cut off range: 200-1100nm (customizable) Material: Optical glass (such as K9, BK7, B270, etc.) or quartz Size: Supports customization (common diameter 3-80mm, thickness 1-200mm) 2. Product features High precision coating: using vacuum coating technology to ensure wavelength accuracy and stability. Weather resistance: Suitable for complex environments such as photocatalysis, LED light sources, photoelectrochemistry, etc. Diverse shapes: customized in circular, square, or irregular shapes, suitable for different optical systems. 3. Application Fields Optical in…
