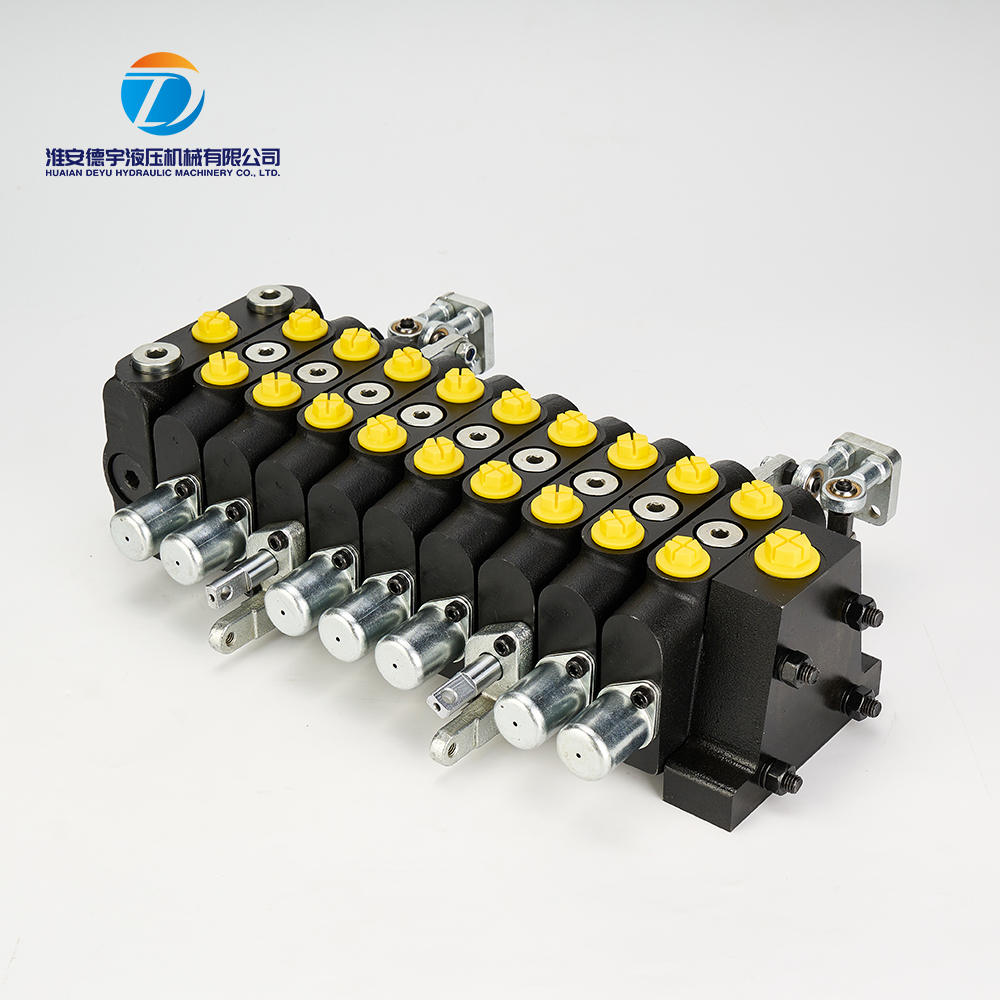

DY6 Series Hydraulic Multi-way Directional Control Valve

The core advantages of our DY6 Series Multi-way Directional Valve focus on precise control, high efficiency and reliability, strong adaptability, and easy maintenance.   Comparison Items DY6 Series Hydraulic Multi-way Directional Valve Conventional Multi-way Valve of the Same Type Core Advantages Control Accuracy Rigid pin feedback, nonlinearity ≤ 1% Ball feedback, nonlinearity 3%-5% Precise movement without jamming, suitable for precision control working conditions Frequency Response ＞190Hz at 90° phase shift ＜120Hz at 90° phase shift Fast response speed to meet dynamic control requirements Leakage Rate 1.3-1.9LPM under 70bar working condition 3-5LPM under 70bar working condition Low leakage, high system efficiency, reduced energy consumption Working Pressure Range 10-105bar (145-1500psi) 20-80bar Wide pressure coverage, adaptable to more working conditions Installation Interface Support D03/ISO standard interfaces Single interface specification No major modification re…
