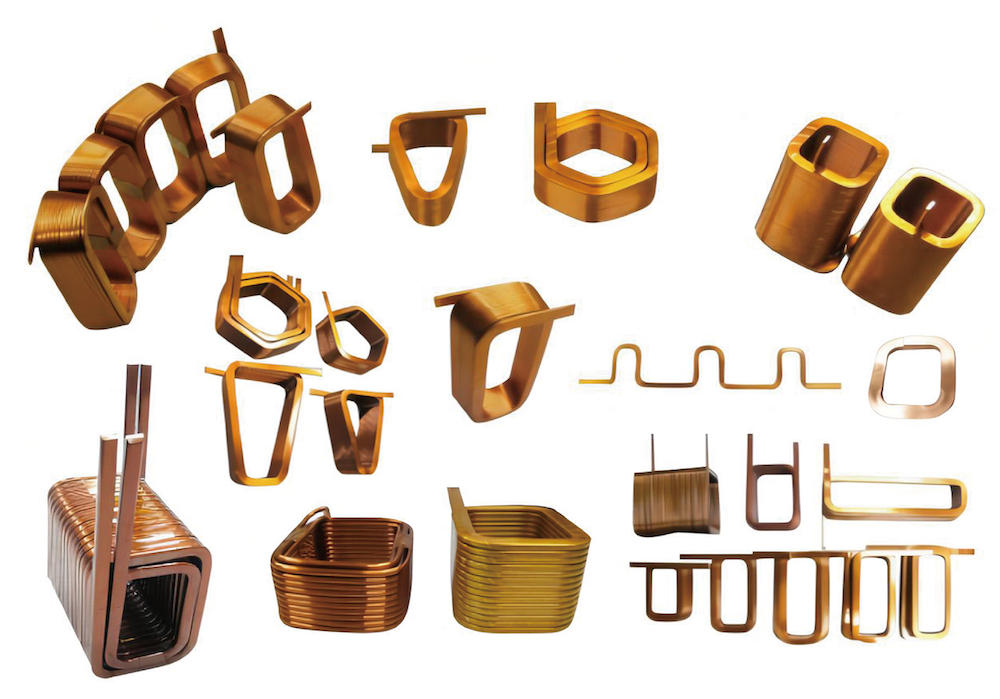

Flat Copper Wire Motor Stator Coil

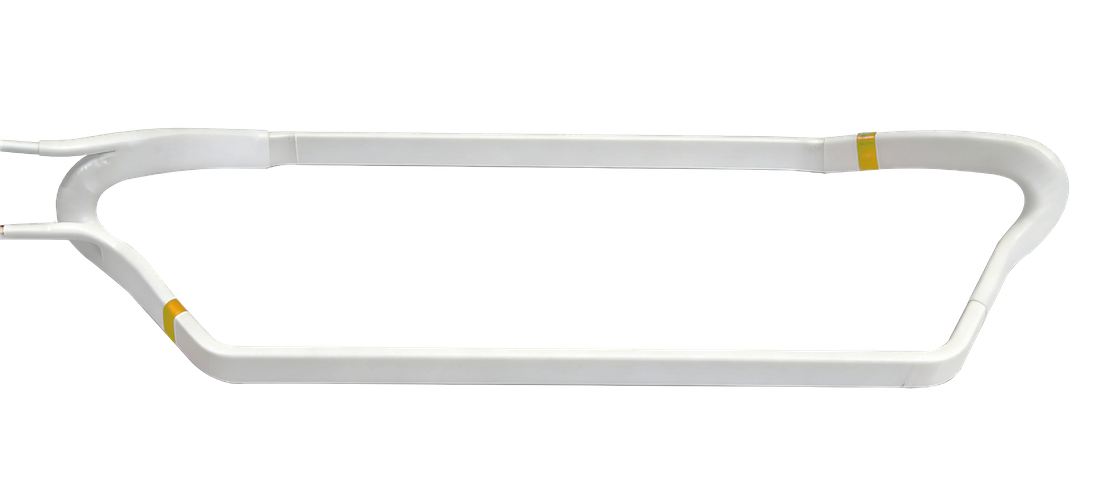

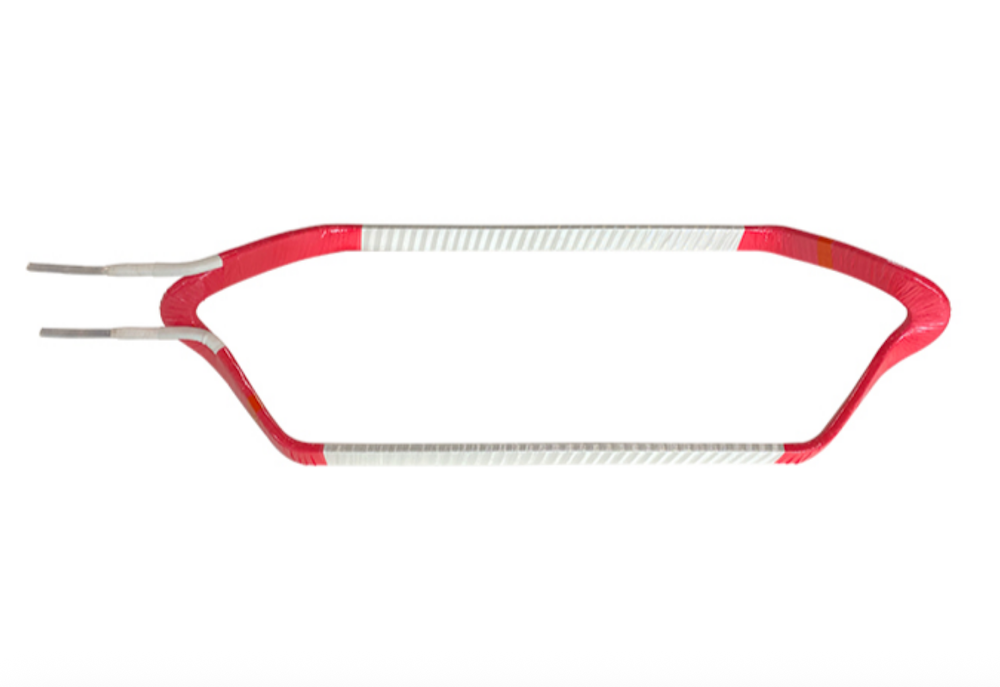

This double-ended metal Motor Coil , which belongs to the core component of motor winding and is mainly used in electromagnetic energy conversion scenes of motors, transformers and other equipment. Stator Coil is formed by winding two wires in parallel, with four connectors a1, a2, A1 and A2, which can realize different functions through different wiring modes; Most of the conductors are made of oxygen-free copper, which has high conductivity and the surface is covered with insulating layer. Some products will be equipped with magnetic cores to improve the inductance, and the diameter of the conductor will be determined according to the current carrying requirements and the quality factor Q value.   Forming Coils：HV molded coil、LV molded coil、Wind turbine fixed rotor coil、Concentrated winding coil   Technical Parameters： Coil length: 400~3000mm Linear length of coil: 180~2500mm Coil span: 50~1000mm Length of end: >50mm Section height: <80mm   Customers can specify the bran…
