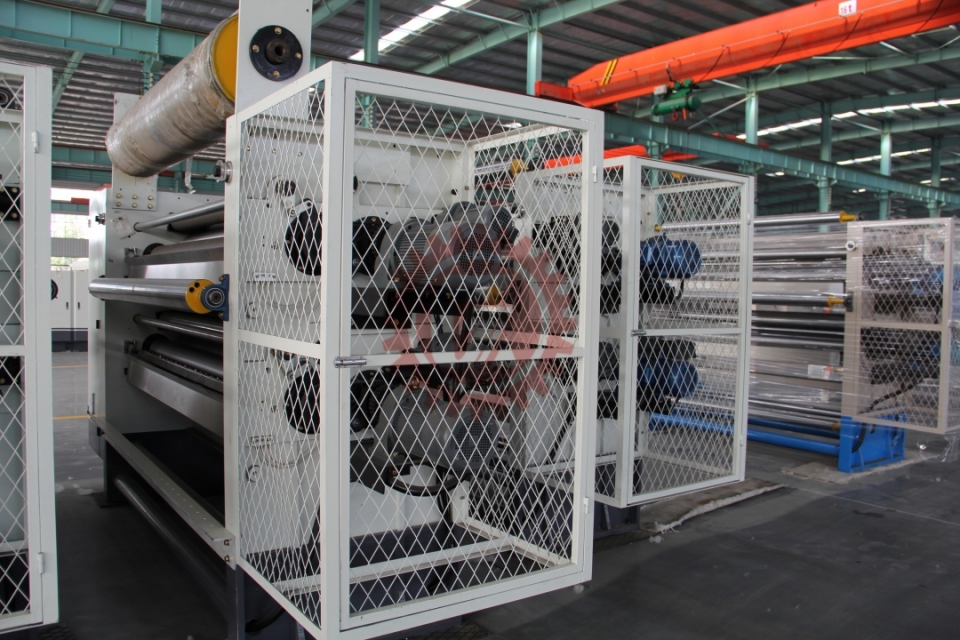

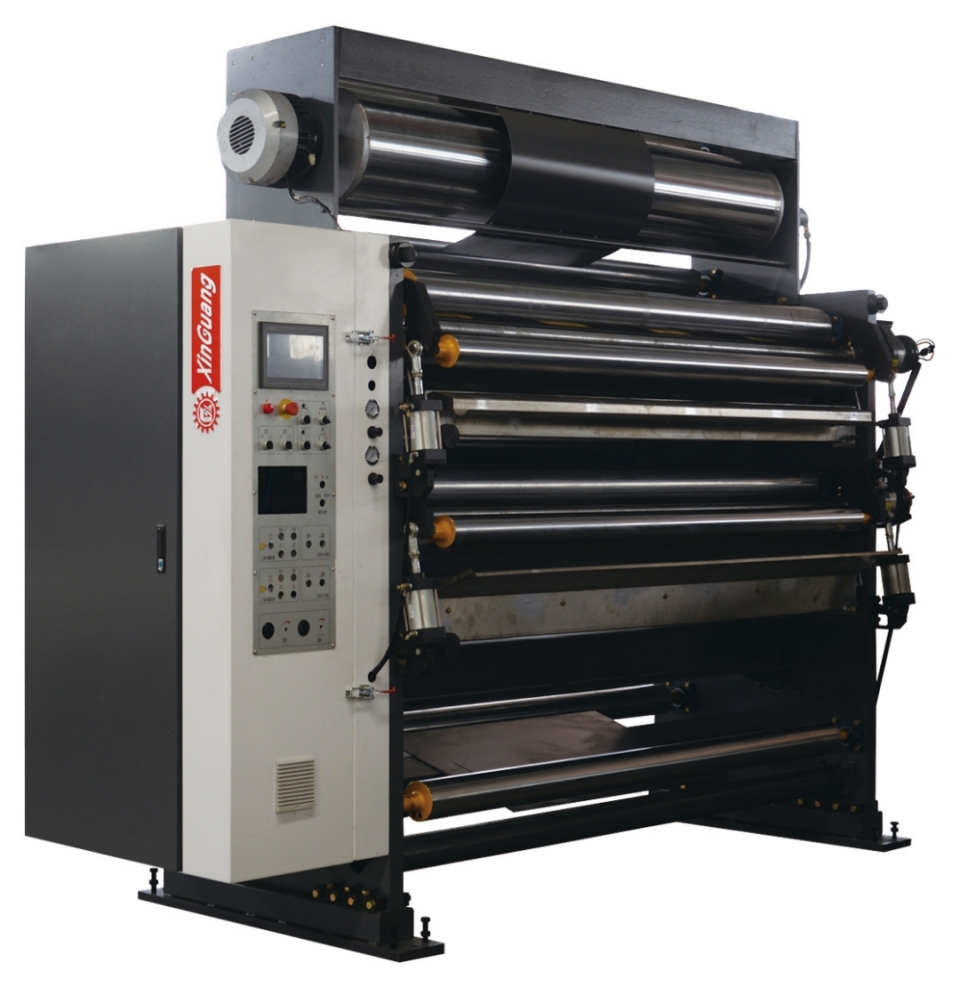

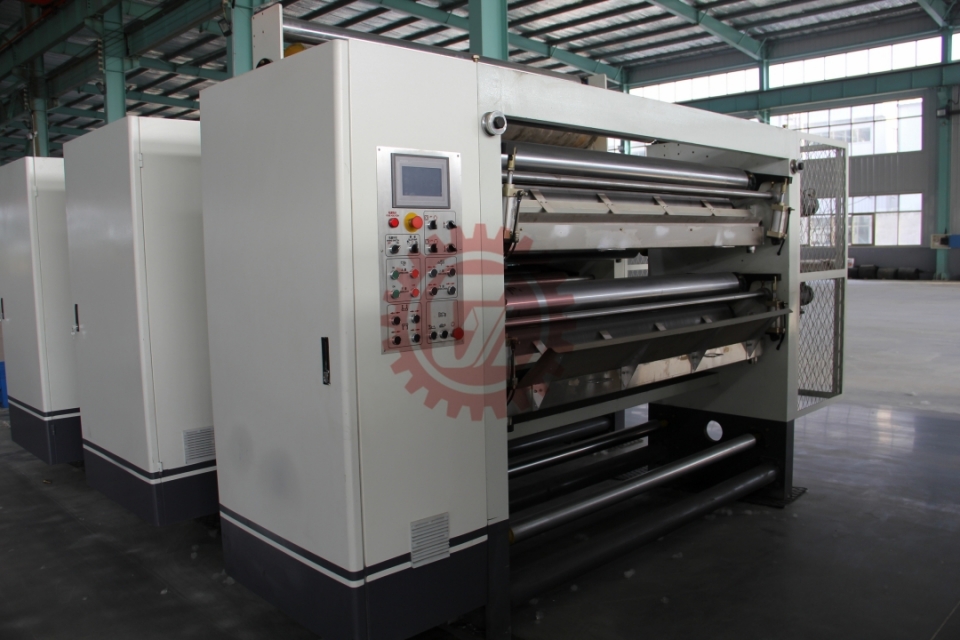

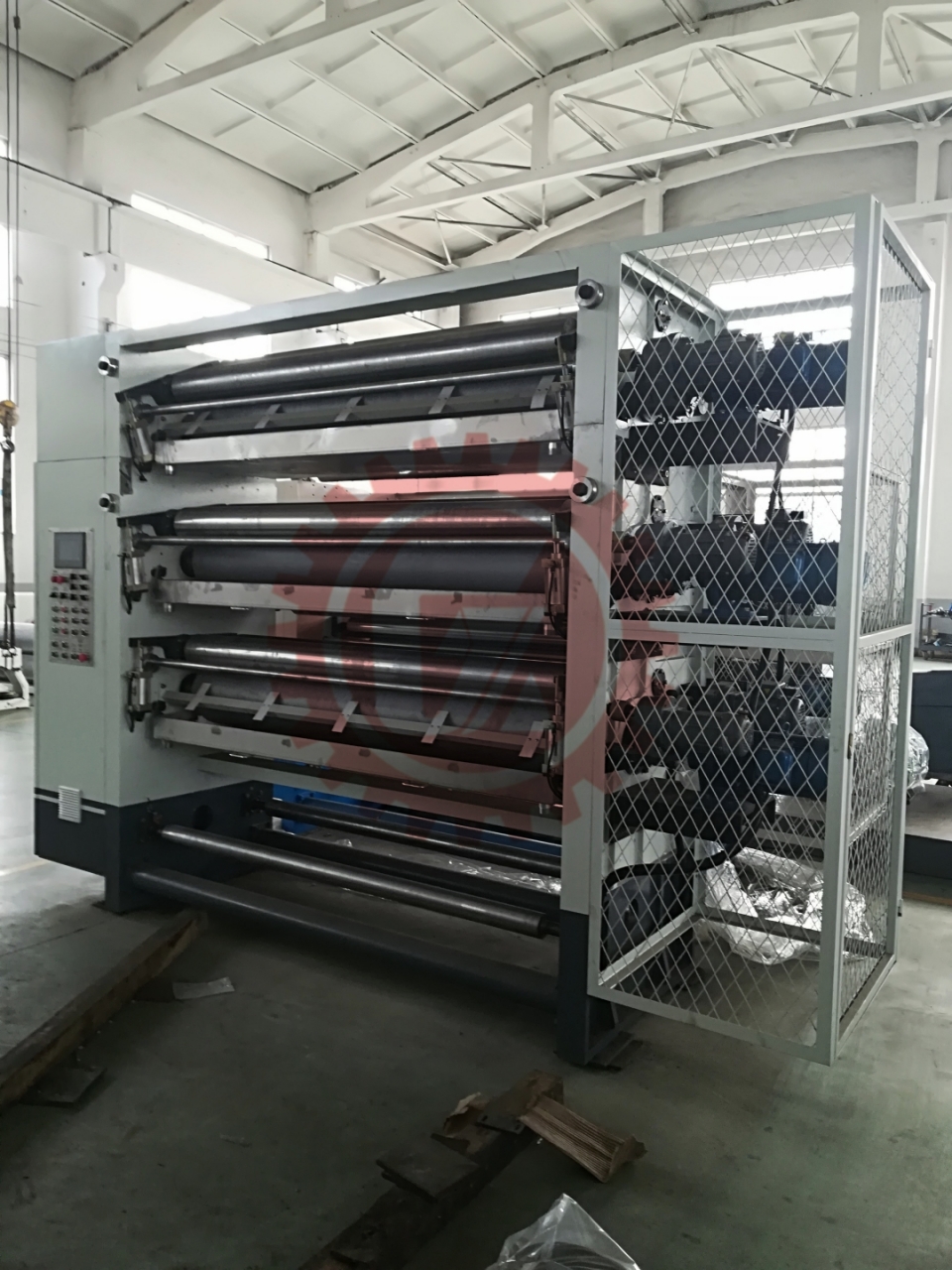

Gluing Machine For Corrugated Cardboard Production Line

GM-35 two-layer gluing machineTechnical parameters: Working breadth:2500mm Design speed:350m/min Economic speed:180--280m/min Adjustment range of adhesive amount:0.08-0.6mm Glue roller mesh number:40 lines Preheating cylinder temperature range:150—200℃ Working power supply:380V  50Hz   15KW Air source system:0.4—0.9Mpa Compression method:Pneumatic Main performance characteristics: The second layer gluing machine is used to transport corrugated paper from the overpass, preheat and heat it up, apply glue again, and then enter the double-sided machine for gelatinization and bonding, producing three layers and five layers of cardboard. Cast iron frame structure, stable performance, upper and middle preheater with a diameter of 400mm, increasing paper temperature for easy glue gelatinization, double pressure roller design for uniform glue coating, stainless steel glue groove, automatic circulation glue supply. After the surface of the glue roller is quenched an…
