High-Precision Pneumatic Rotary Actuator for Automation

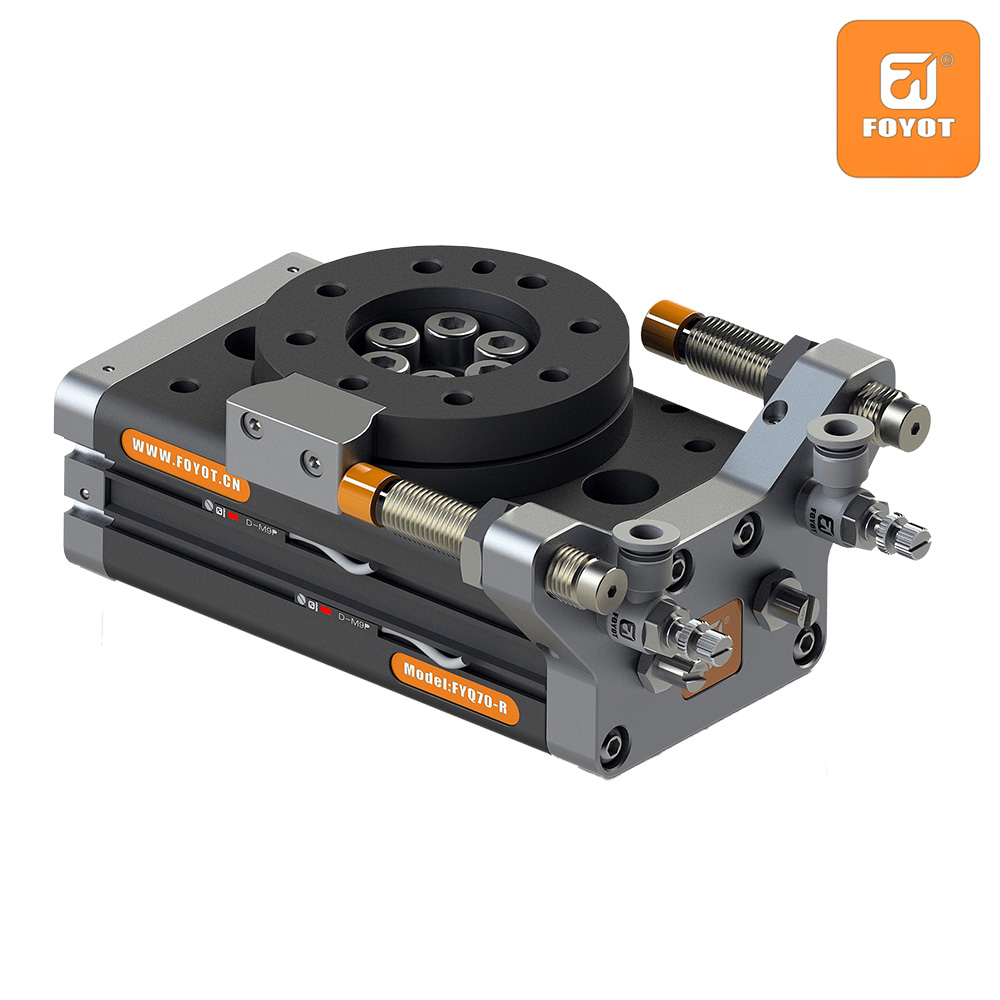

Product Name: High - Precision Pneumatic Rotary Actuator   Keywords: Adjustable Rotary Actuator for Automation, Versatile Actuator for Machining, Robust Actuator for Assembly   Product Introduction:   Introducing the High - Precision Pneumatic Rotary Actuator, a top - tier solution engineered to enhance performance in automation, machining, and assembly applications. This actuator, with a size code of 100, is designed for precision and reliability.   Operating with oil - free, double - acting air as the working fluid and an operating pressure range of 0.1 - 1.0MPa, it delivers consistent and powerful rotary action. The angle adjustment range spans 0 - 190 degrees, enabling flexible positioning. With a cylinder diameter of 32mm, it offers an allowable radial load of 390N, an allowable axial load of 493N, and an allowable bending moment of 18N·m, ensuring it can handle demanding tasks. At 0.5MPa, the effective output torque reaches 10.1N·m, providing ample force for various operations.  …
