High-Strength Forged Shafts for Extrusion Equipment

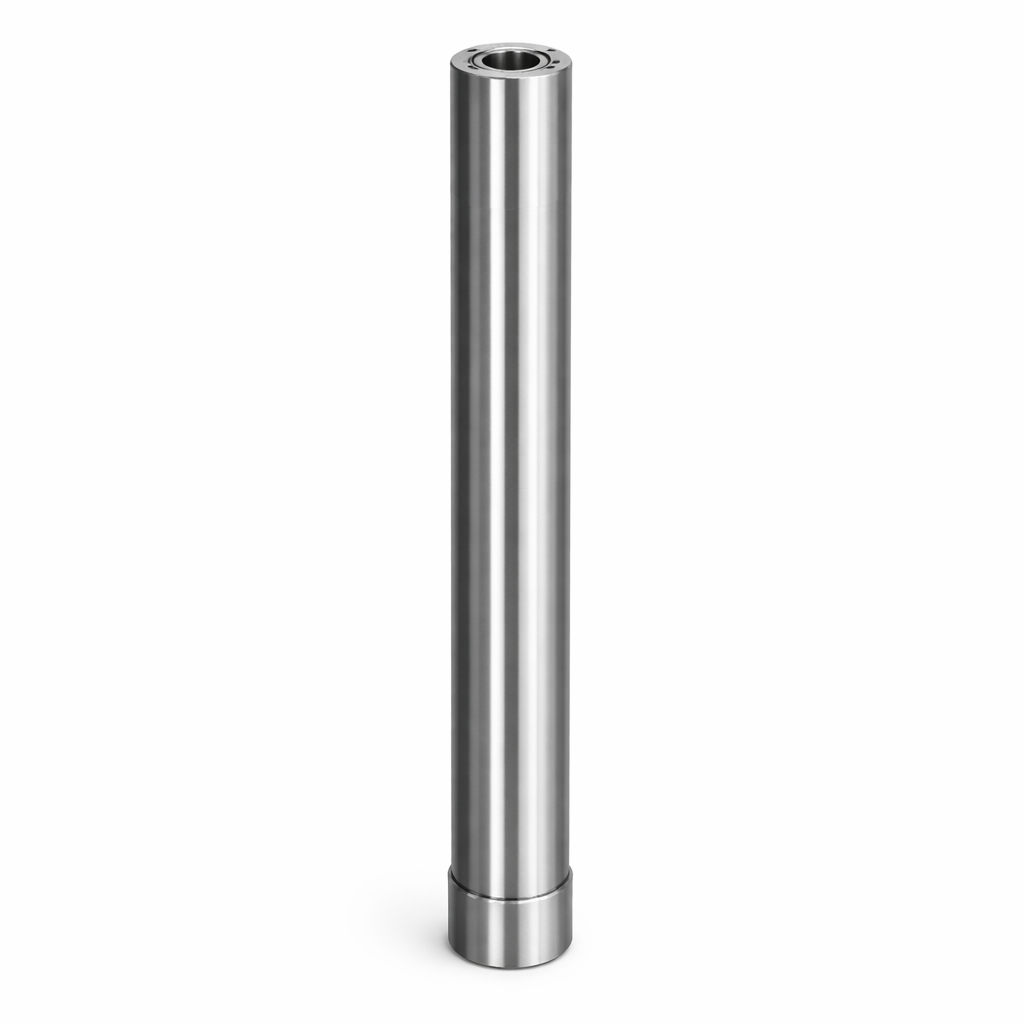

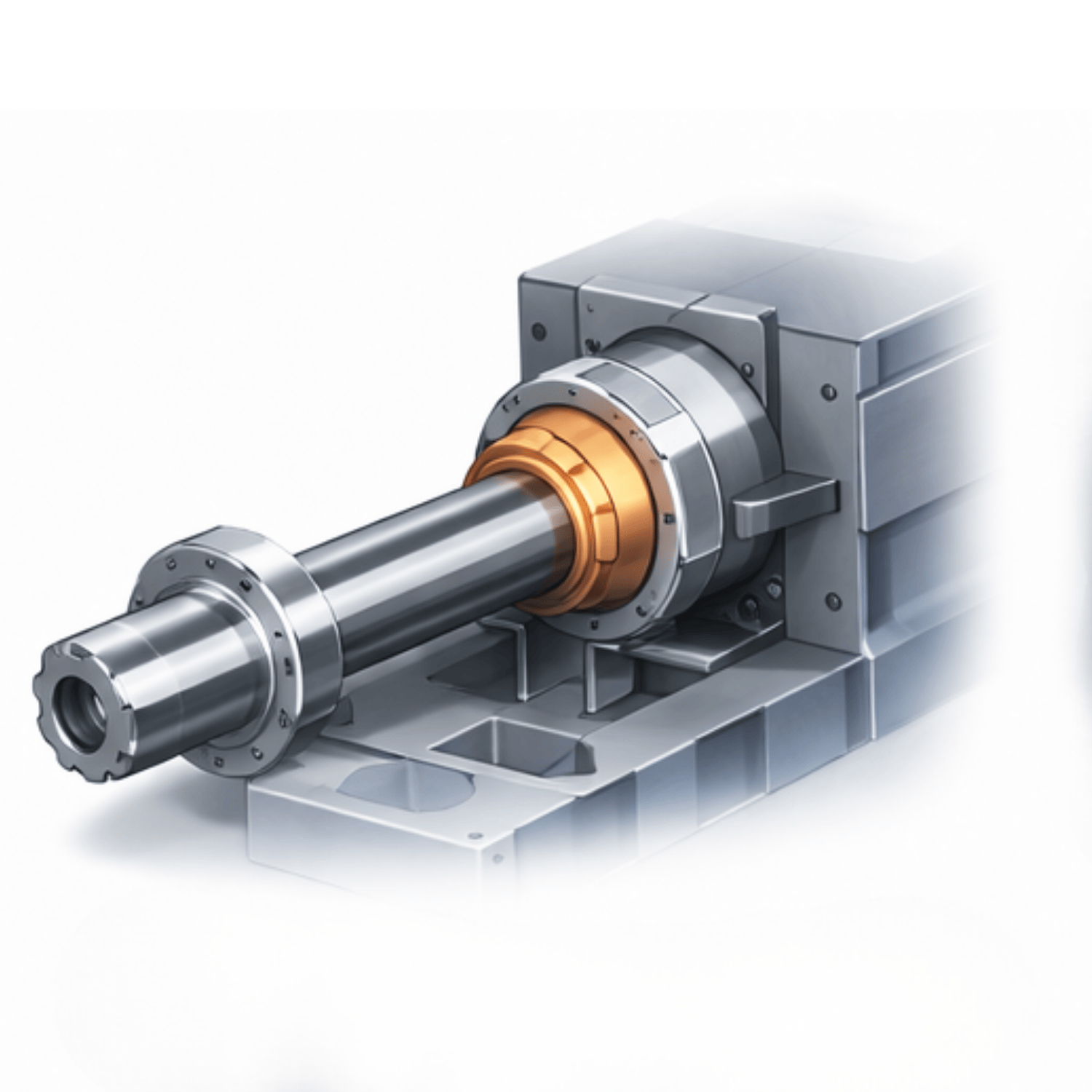

High-Strength Forged Shafts for Extrusion Equipment The Forged Extrusion Stem Shaft is a critical load-bearing component in medium-to-large industrial extrusion presses. It is designed to resist high axial compressive loads, cyclic fatigue, and long-term continuous operation under demanding extrusion conditions. Open-die forging combined with controlled heat treatment ensures dense internal structure and aligned grain flow, providing superior structural reliability compared to cast or bar-stock alternatives. Typical Applications Aluminum extrusion presses Copper extrusion presses Medium-to-large industrial extrusion equipment Non-consumable structural components in heavy-duty extrusion lines Typical Dimensions Parameter Typical Range Shaft Diameter Ø150 – 350 mm Overall Length 1,000 – 3,000 mm Single Piece Weight 0.5 – 4.5 tons Geometry Straight or stepped shaft, shoulder ends, threaded ends (optional) All dimensions are within the optimal overlap between extrusion…
