Impact Resistant Umbrella Anchor for Machine Bases

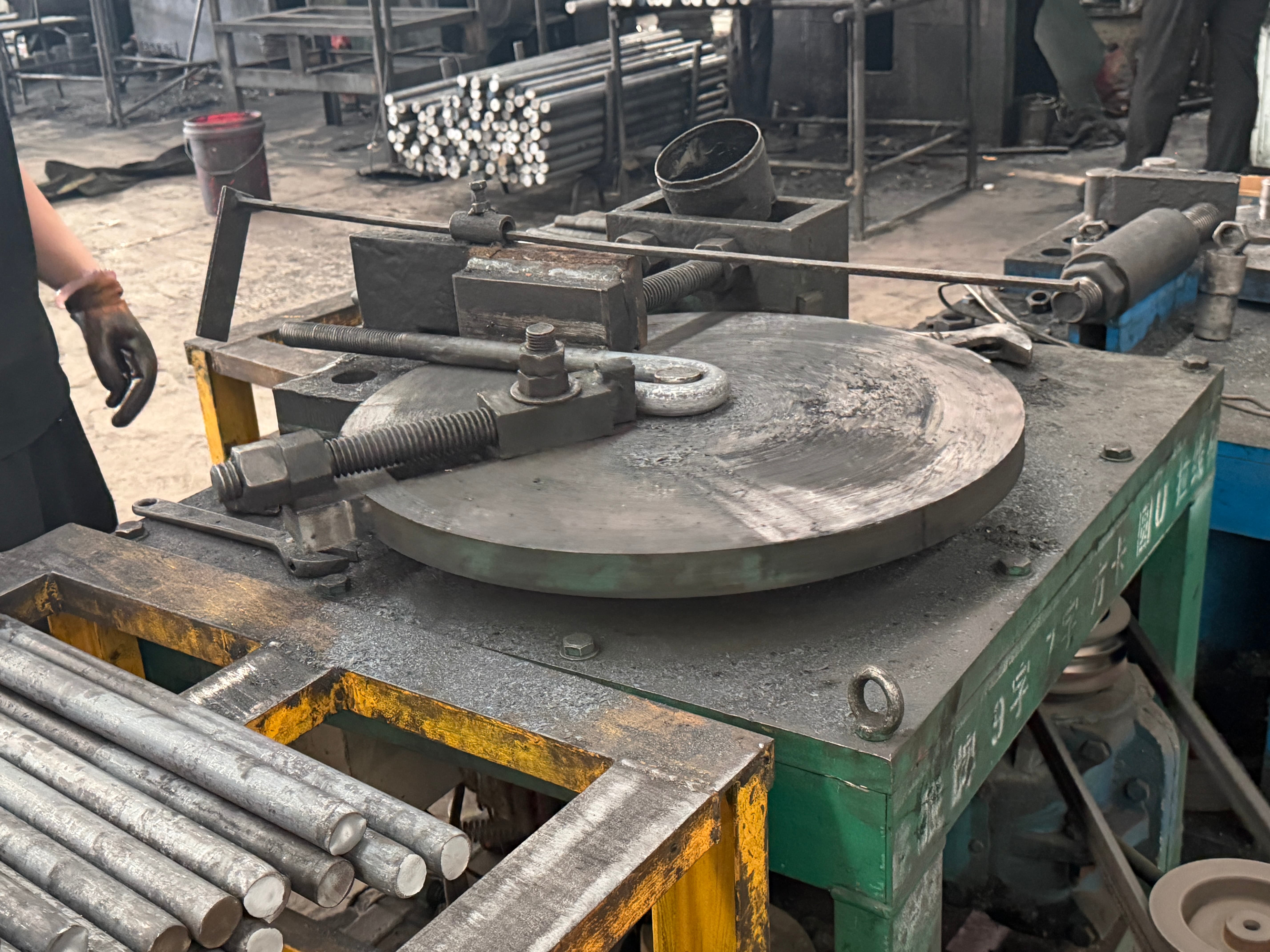

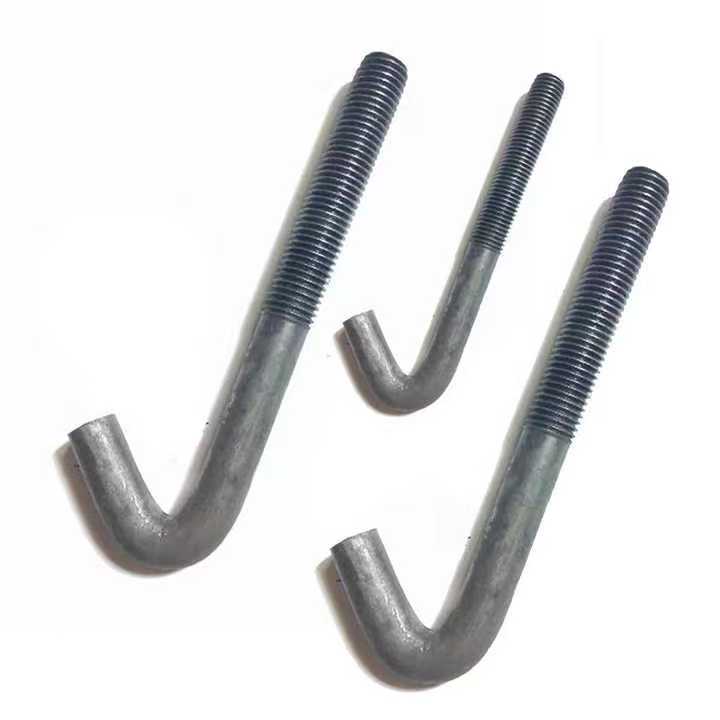

This impact resistant umbrella anchor is specifically designed for machine bases subjected to high impact loads, vibration, and cyclic stressing. The umbrella-shaped head spreads forces over a wide area of the concrete foundation, absorbing and dissipating energy from shock loads that would otherwise cause progressive concrete damage. Available in diameters from M20 to M30 and lengths from 800mm to 2000mm, this anchor is suitable for punch presses, forging hammers, crushers, and other impact-generating equipment. The anchor is manufactured from Q345B structural steel with hot-dipped galvanized finish for corrosion protection. While Anchor Bolts and L-type anchor bolt provide standard foundation anchoring, the umbrella design is specifically engineered to manage the unique demands of impact-loaded equipment where shock absorption is critical. The umbrella head is formed through a specialized forging process that creates the characteristic curved profile. This geometry increases the con…
