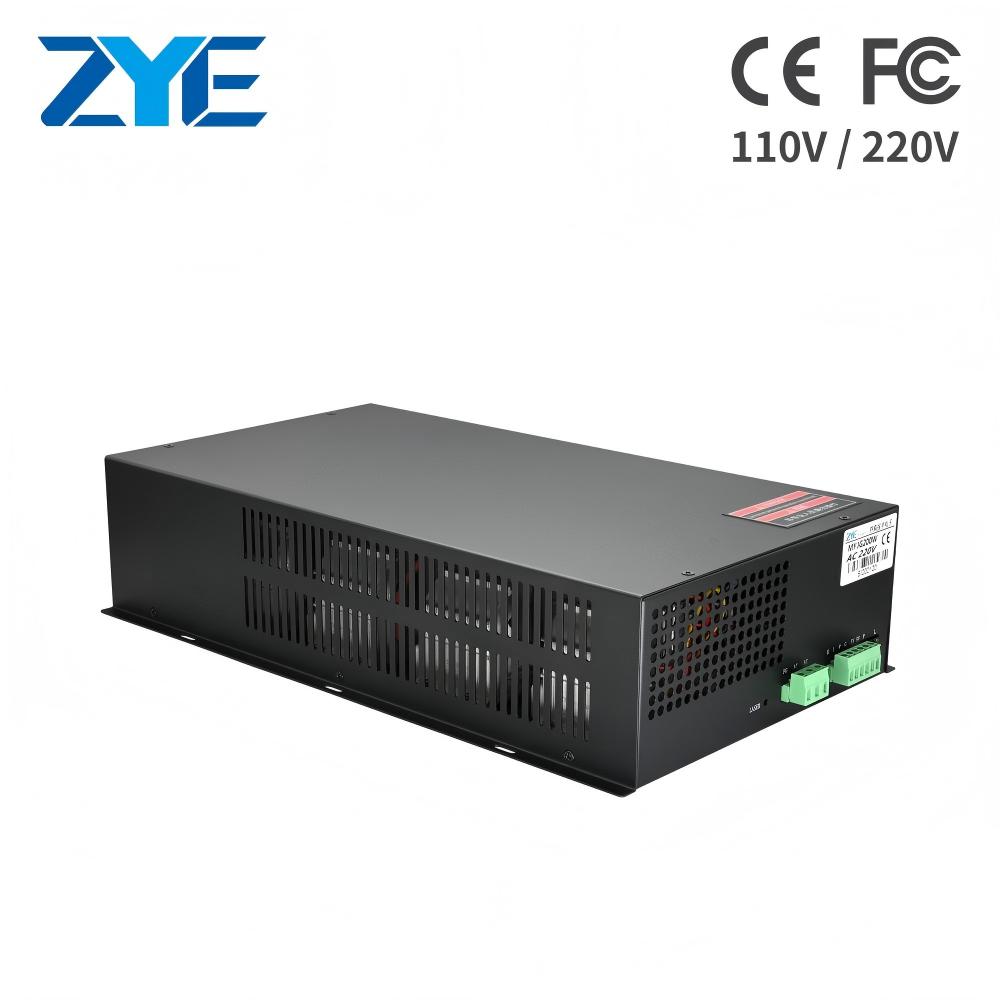

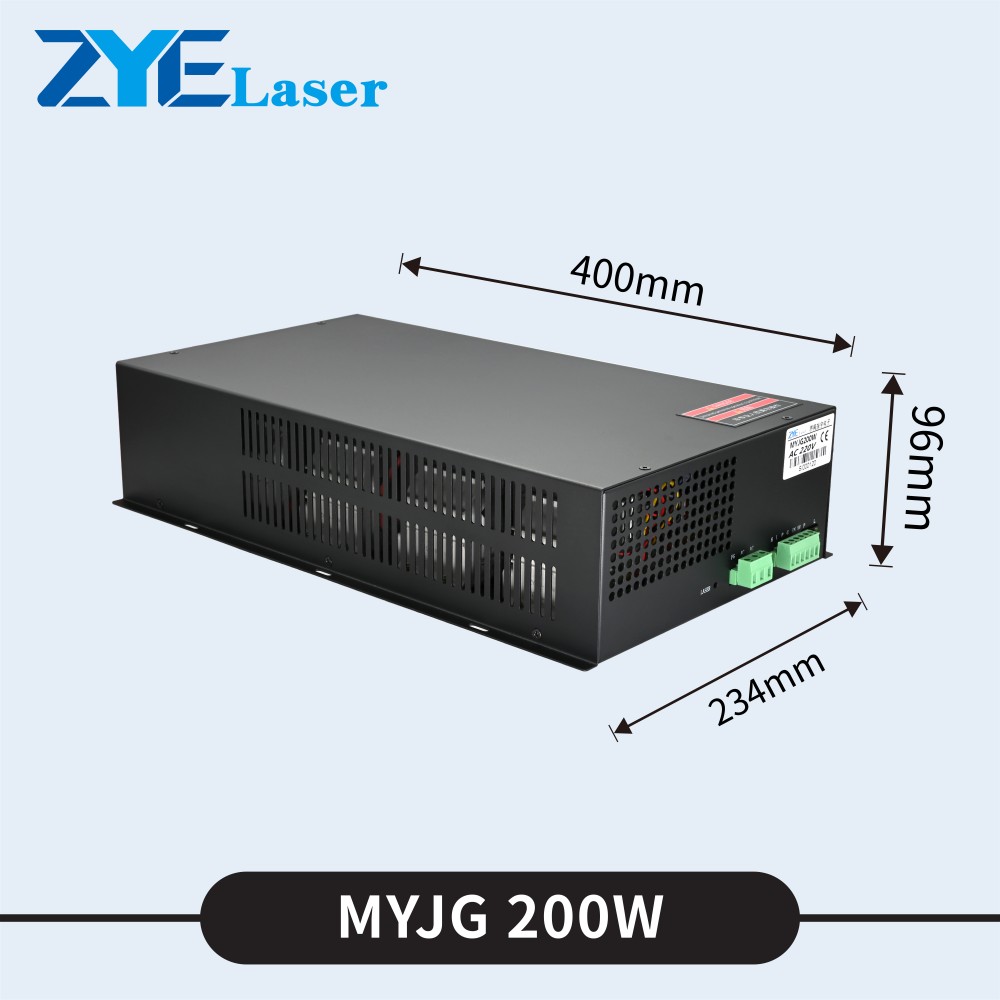

MYJG200W CO2 laser power supply

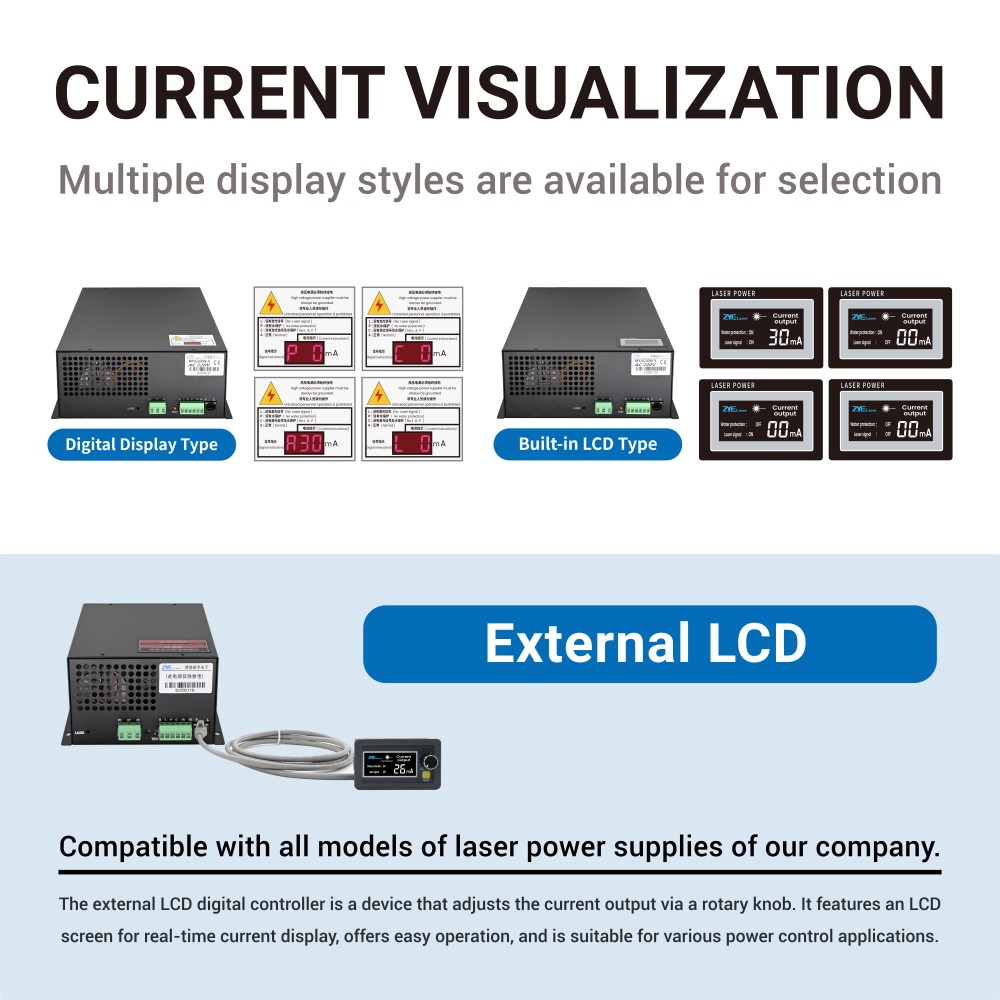

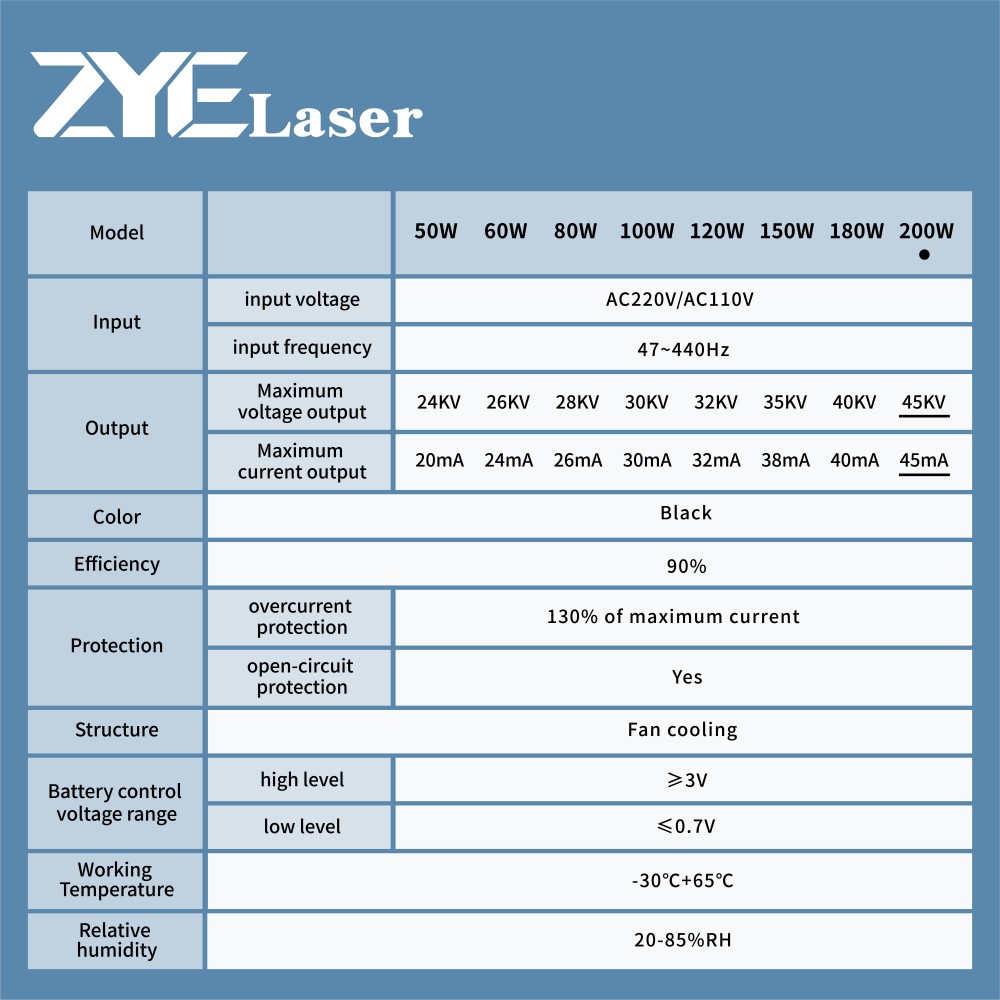

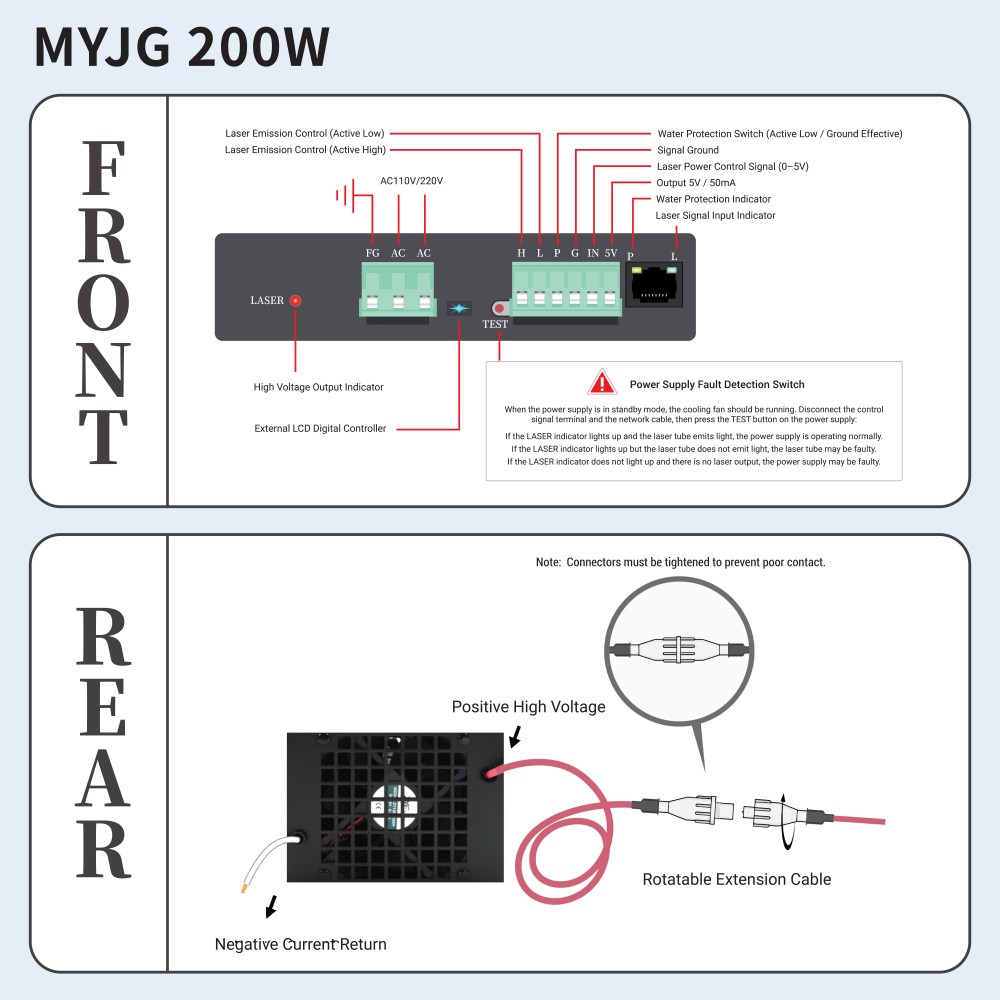

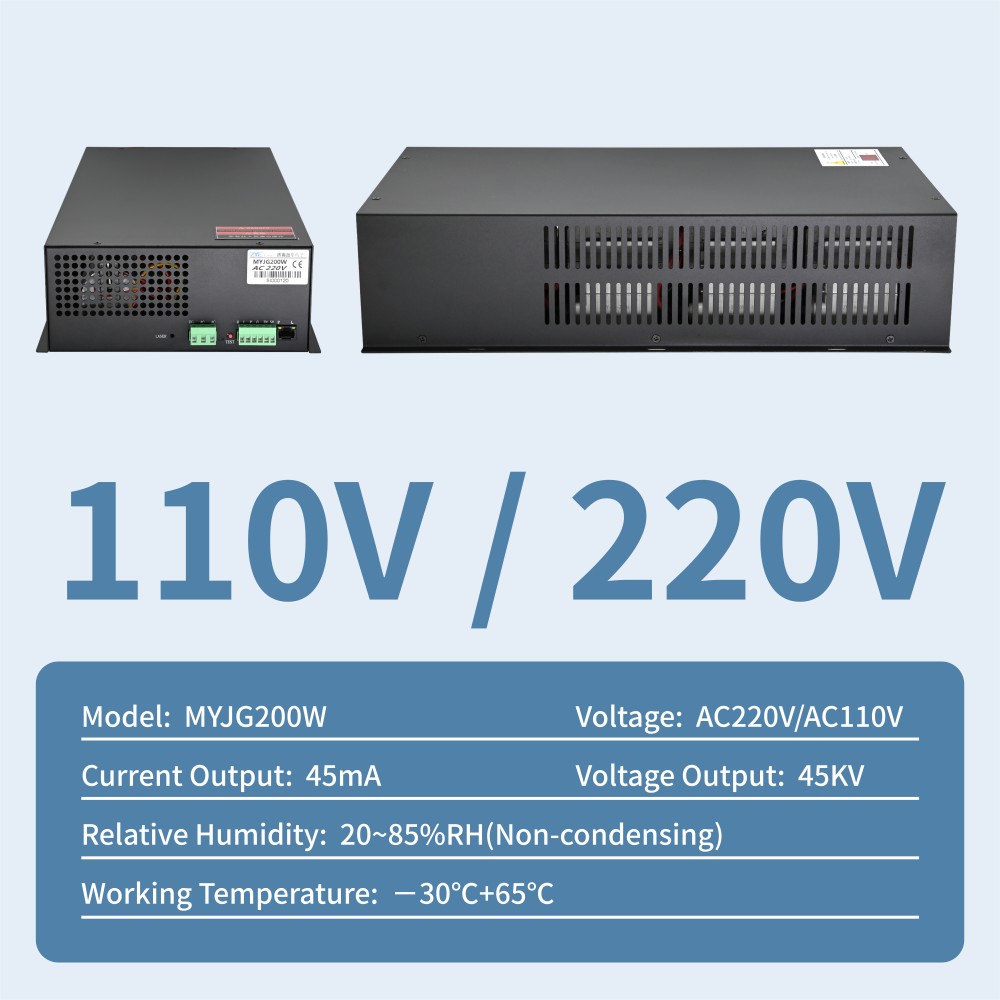

The MYJG200W is a high-voltage power supply designed for technically matched 200W CO2 glass laser tube systems.   It provides a maximum output voltage of 45kV and a maximum output current of 45mA.   Instead of selecting a laser power supply only by wattage, the MYJG200W allows machine manufacturers and service technicians to check the laser-enable signal, 0–5V power-control input, water-protection circuit and current-monitoring configuration before installation.     Designed for Control and Current Monitoring   For CO2 laser machine production and maintenance, electrical-control compatibility is as important as the rated power.   The MYJG200W provides interfaces for:   High-level laser emission control Low-level laser emission control Water-protection input Signal ground 0–5V laser power control 5V auxiliary output Laser signal indication Water-protection indication External current-display connection   These interfaces allow the power supply to be checked against the machine contro…
