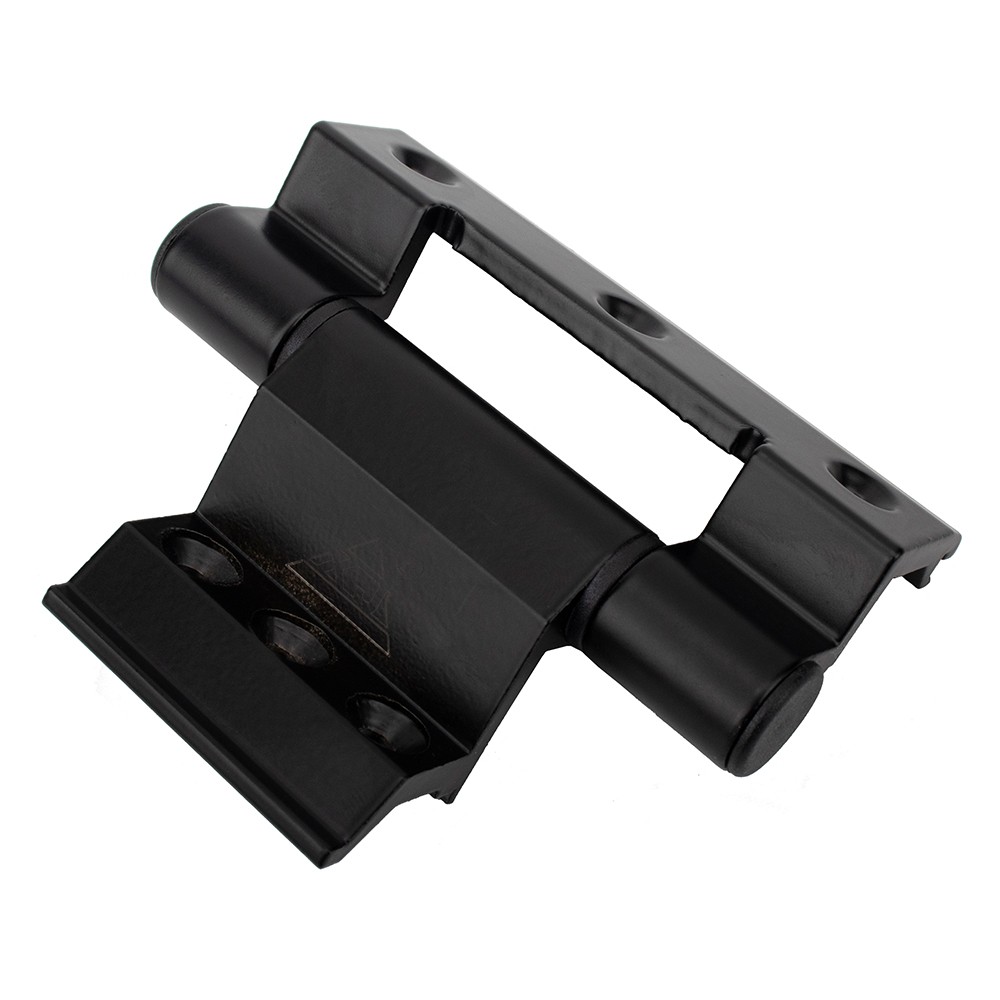

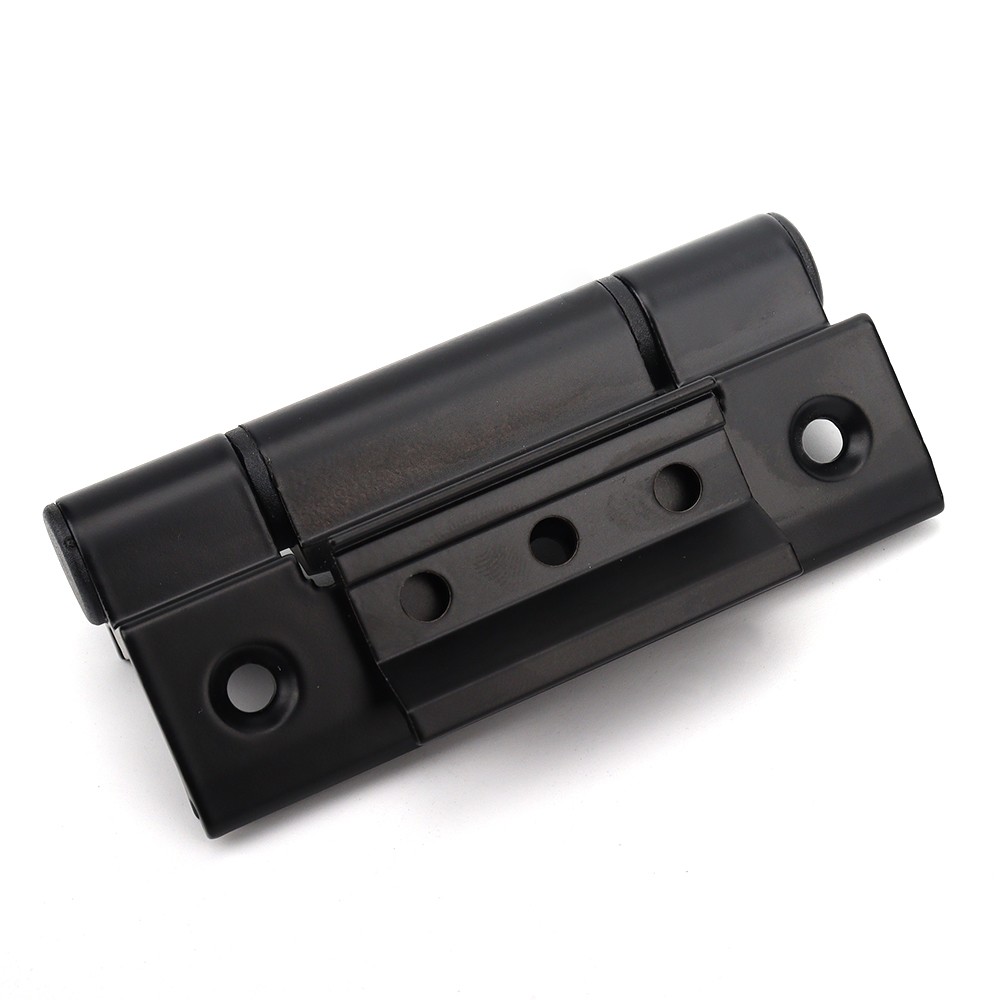

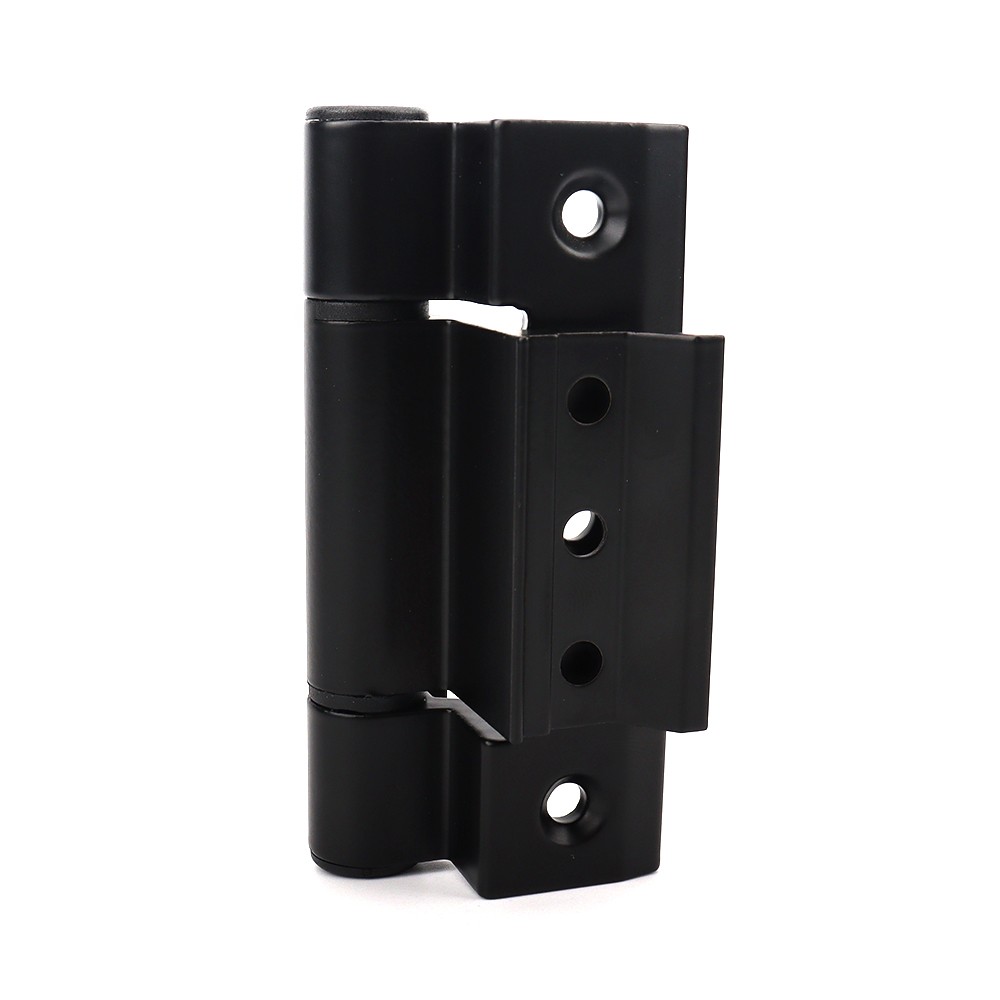

Adjustable Aluminum Pivot Window Hinge

Adjustable Aluminum Pivot Window Hinge establishes an adjustable rotation axis between a compatible aluminum window sash and frame. Model H143-N1438 measures 152 × 25 mm in the configuration data and combines aluminum alloy with stainless and nylon components. Axis location, extrusion support and fixing access must be resolved from the window profile; a door hinge with a similar outline is not a substitute. Locating the Pivot Axis From the Sash Datum The two hinge members form the rotating joint, while the adjustment provision supports alignment during fitting. When selecting from Window Hinges, show the window profile sections and mark the intended axis relative to the closed sash. Model: H143-N1438 Material: Aluminum alloy with stainless and nylon components Reference Size: 152 × 25 mm Surface Finish: Powder-coated surface Colour: Project colour option listed Profile Support and Adjustment Access Record the sash dimensions and mass together with the adjustment and fixing ac…
