Compact Aluminum Butt Door Hinge

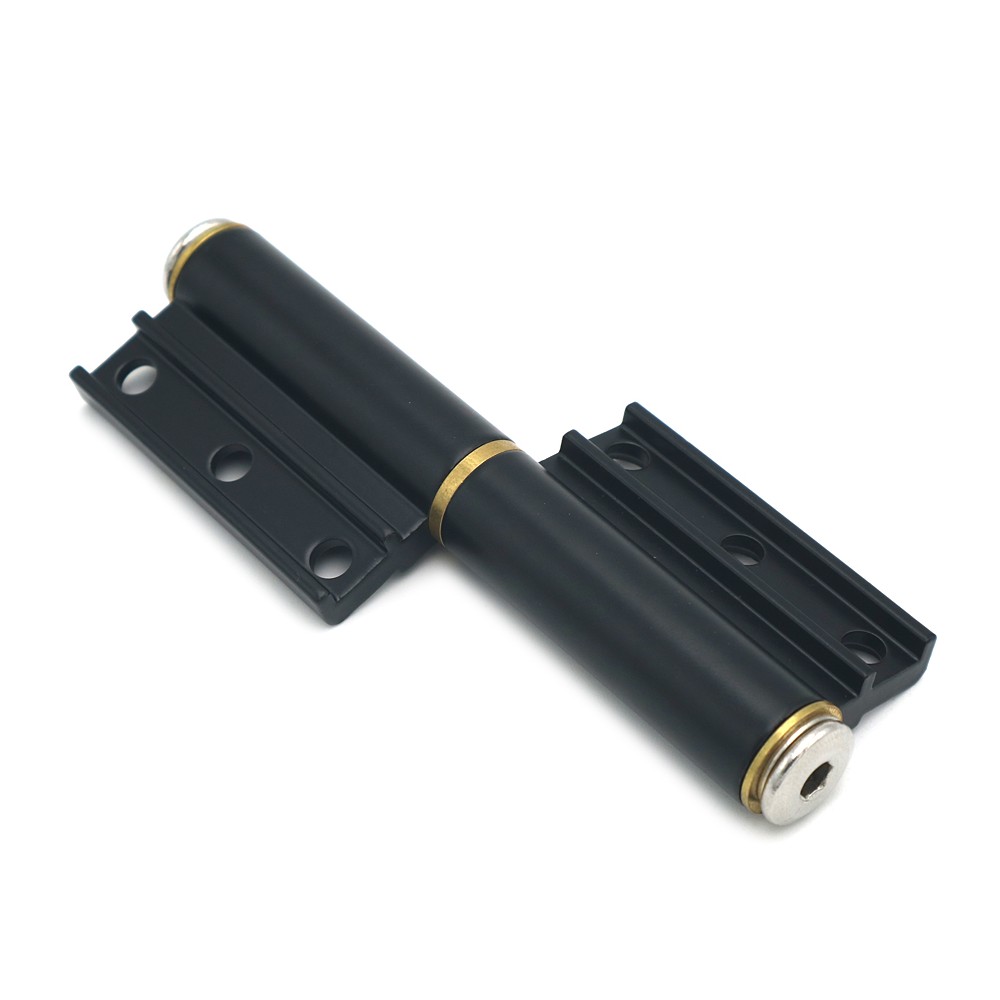

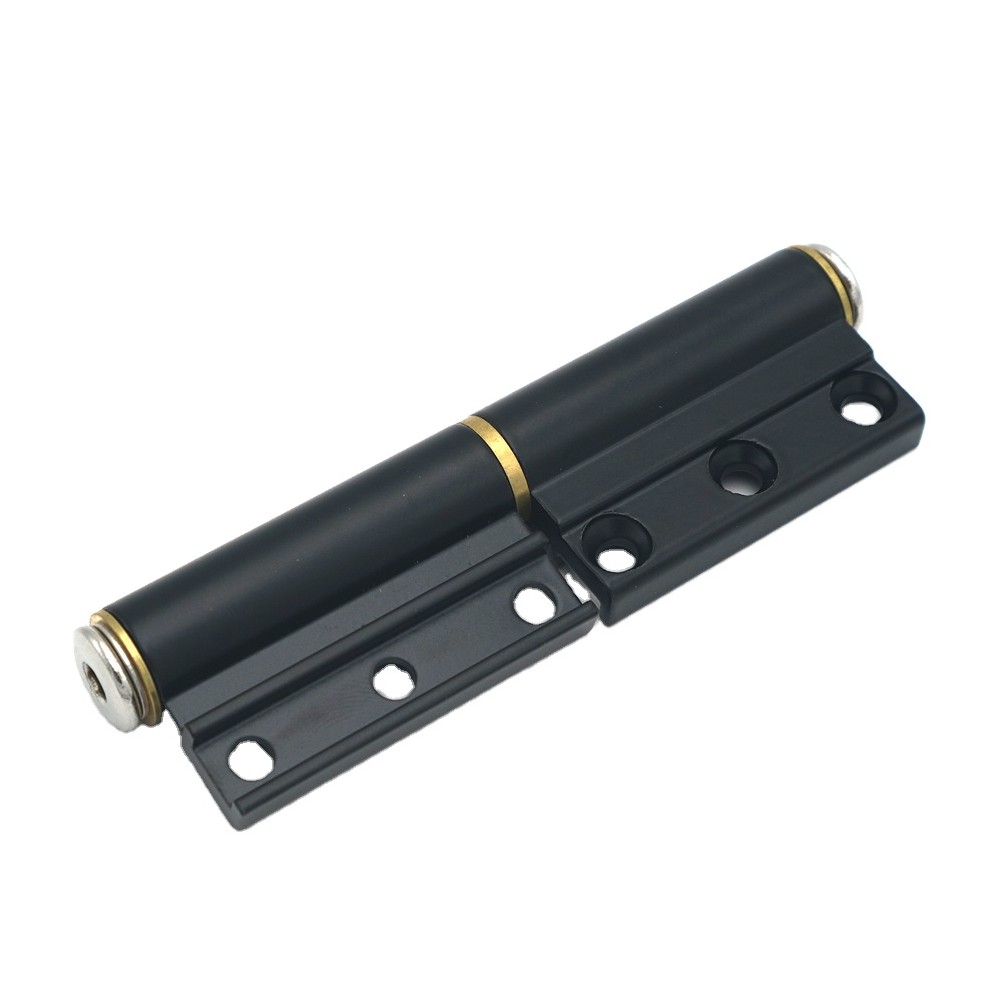

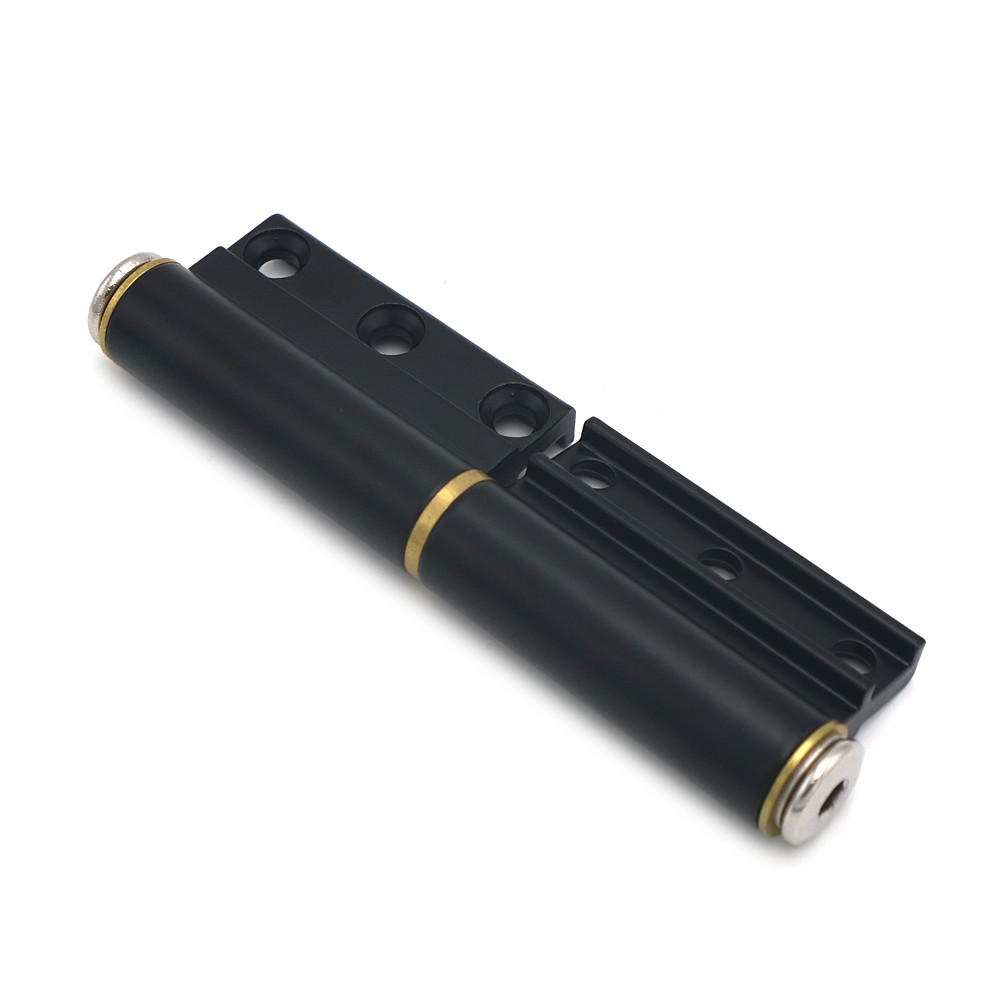

Compact Aluminum Butt Door Hinge is a narrow-footprint butt hinge for compatible aluminum swing-door sections. Model H048A forms a conventional rotation axis within a 96 × 29.4 mm reference envelope. Selection is governed by the actual leaf width, barrel offset, hole pattern and profile support; compact dimensions alone do not establish the hinge quantity or door capacity. Narrow Mounting Leaves and Central Barrel The two leaves fasten to the door and frame profiles, while the barrel defines the pivot line between them. A sample of this compact butt-hinge hardware should close into the available recess without forcing the profiles apart or shifting the intended door gap. Body optionsAluminum or zinc alloy Listed thickness4 mm SurfacePowder coating ColourProject colour option listed Profile Data That Determines the Match Provide the door and frame cross-sections together with the hinge-axis offset. The black profile door pivot comparison also needs the hinge leaf dimensions and…
