High Power AC-DC Power Supply PCBA

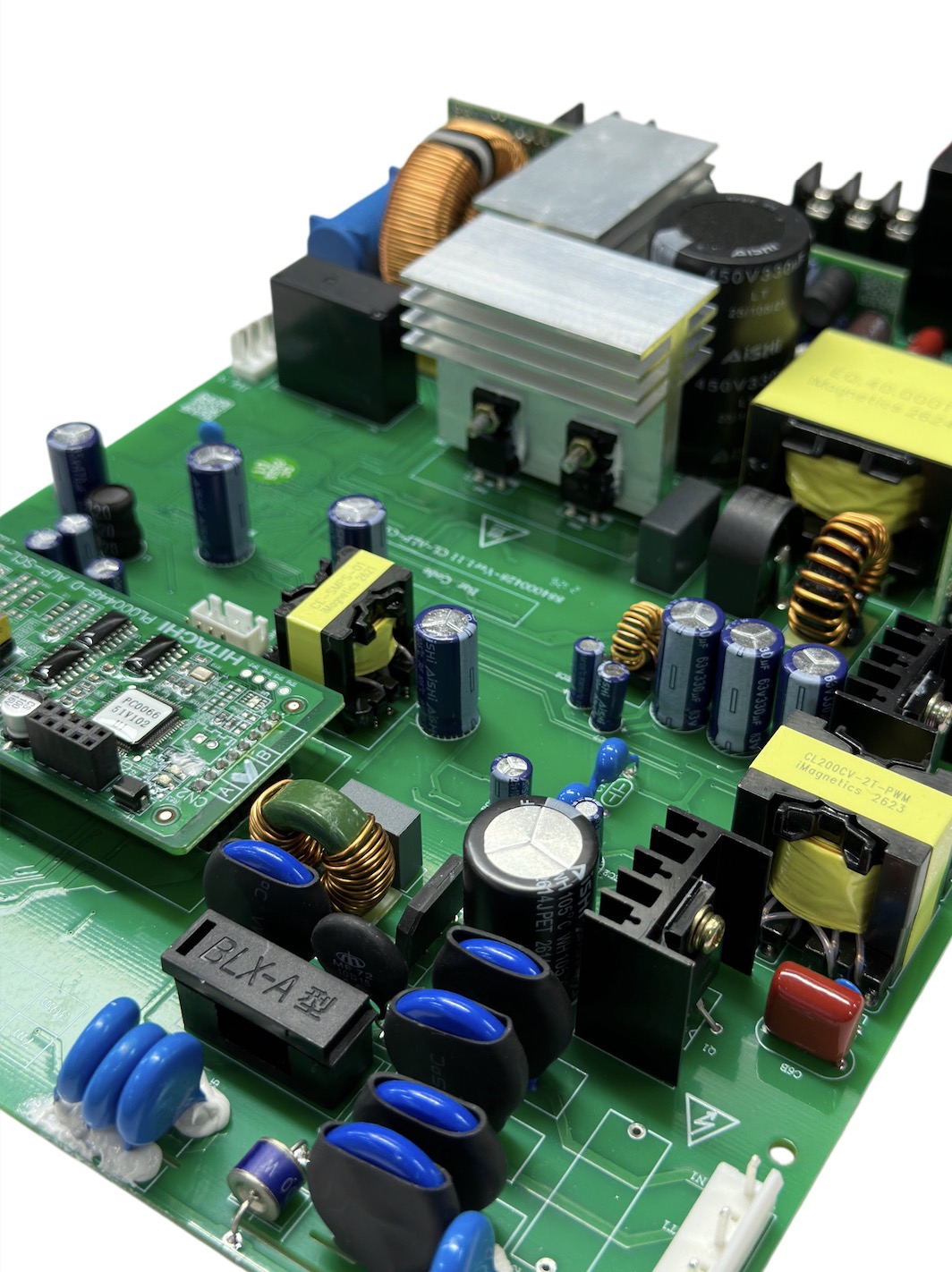

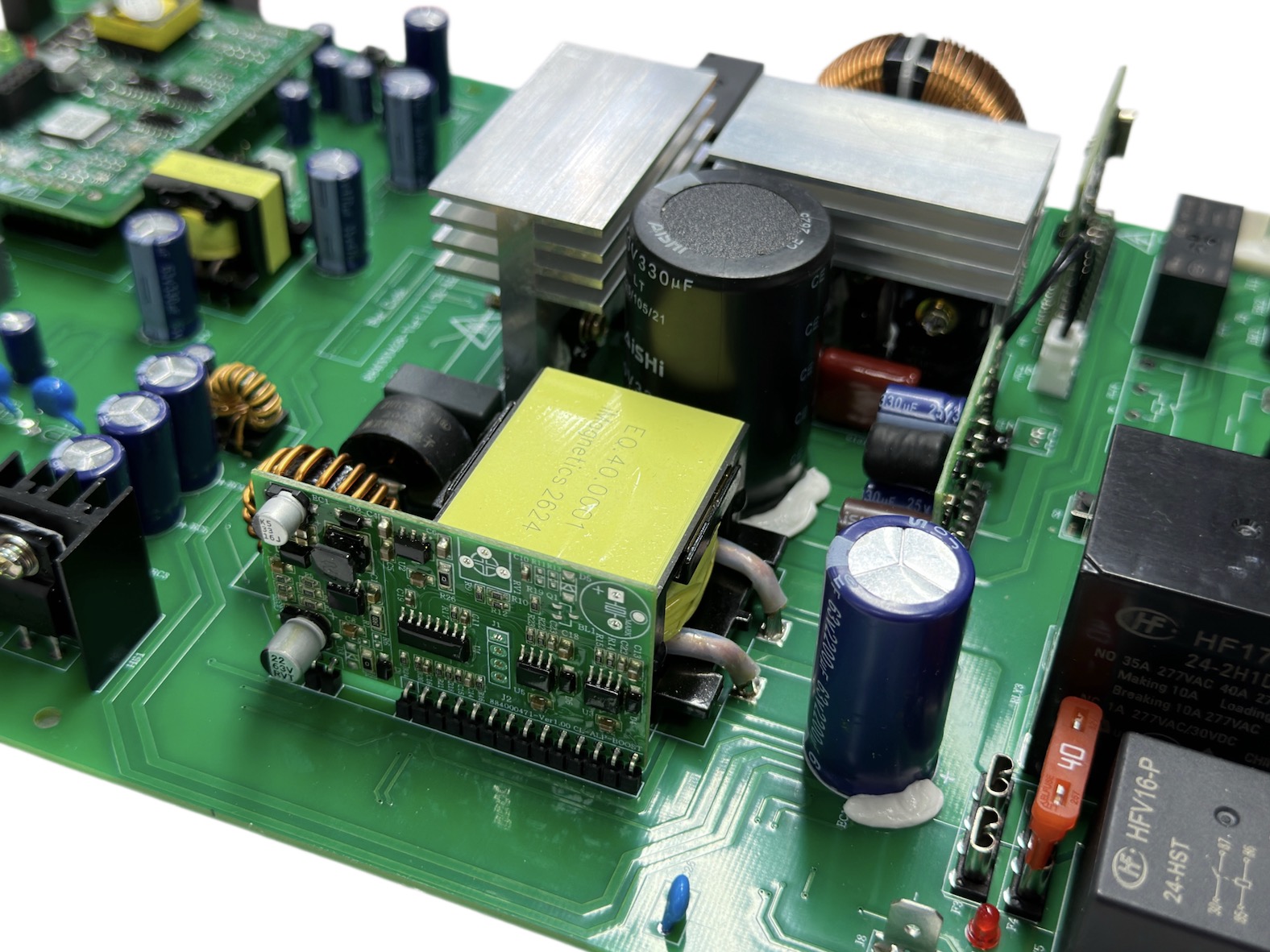

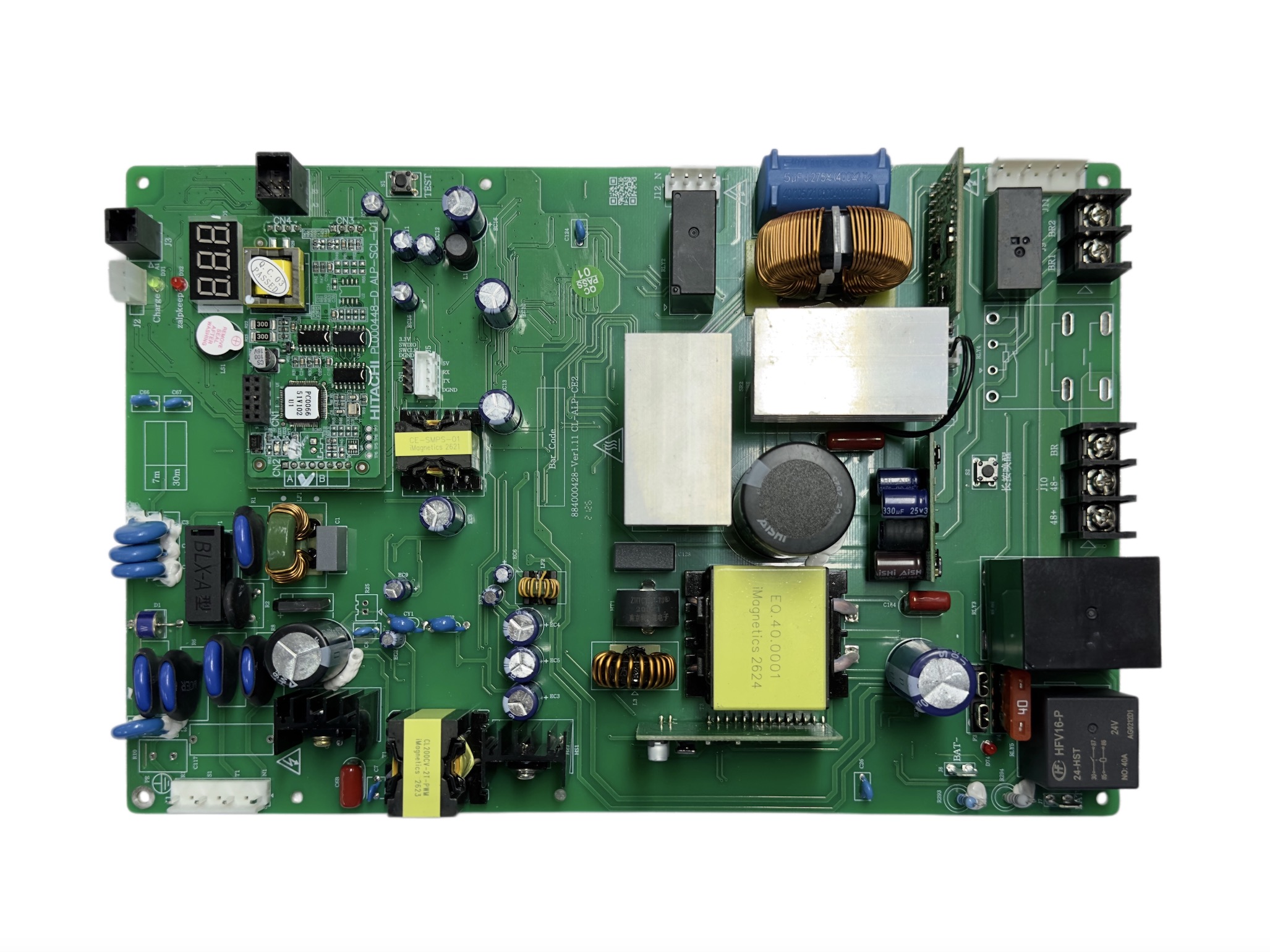

The High Power AC-DC Power Supply Control PCBA is built for industrial power conversion equipment, charging systems, energy storage devices, and other high-power electronic applications. The board converts AC input power into multiple regulated DC outputs and combines power control, protection, a digital display, and auxiliary power management into a single control platform. It fits industrial equipment that needs stable power delivery and continuous operation. The PCBA carries high-voltage power circuitry with a digital control section on a single FR-4 PCB. The board holds a PFC power inductor, high-frequency transformer, EMI filter components, large electrolytic capacitors, power relay, fuse holder, MOV surge protection devices, heat sinks, screw terminal blocks, and a digital voltage display module. Several auxiliary power modules and signal control circuits also join the board and provide power monitoring and system management functions. Manufacturing uses DIP assembly with SMT…
