LCD Power and Backlight Driver PCBA

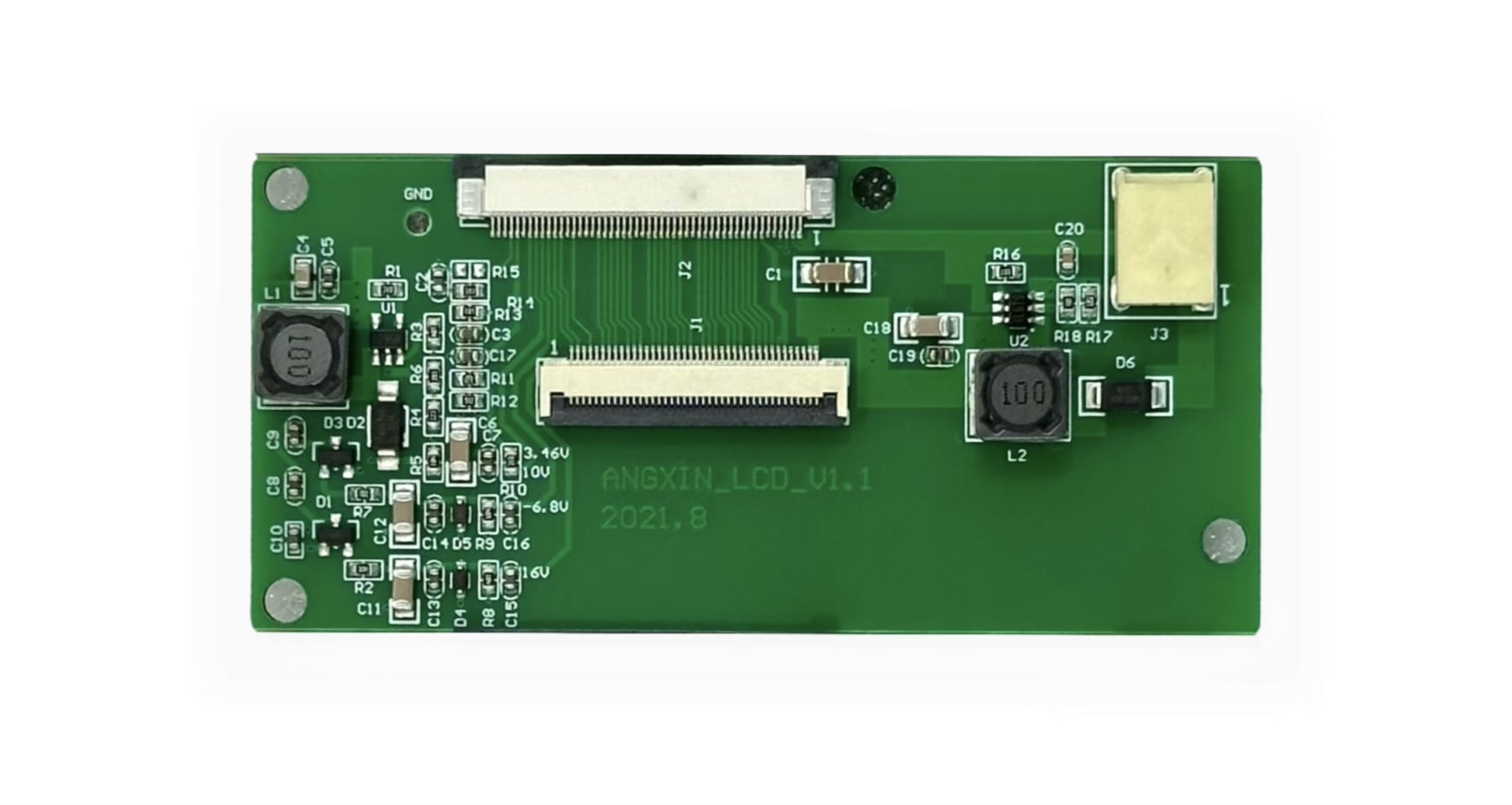

The LCD Power and Backlight Driver PCBA provides power conversion and interface support for LCD modules used in industrial and electronic equipment. The rectangular FR-4 board includes multiple power sections, FPC/FFC connectors, and an external connection interface. Voltage markings including 3.16V, -6.8V, 10V, and 16V appear on the PCB, showing that the circuit supports several voltage rails the connected display system needs. The board uses two wide display connectors, J1 and J2, to connect LCD-related modules or flexible cables, and the J3 connector provides another connection point for the external system. The power section holds inductors, diodes, power-management devices, resistors, and capacitors arranged around the corresponding conversion circuits. This layout lets the PCBA handle voltage conversion and distribute the required power to the display module through a compact interface board.   From a manufacturing perspective, this board suits SMT assembly well because most…
