Aluminum Casement Window Butt Hinge

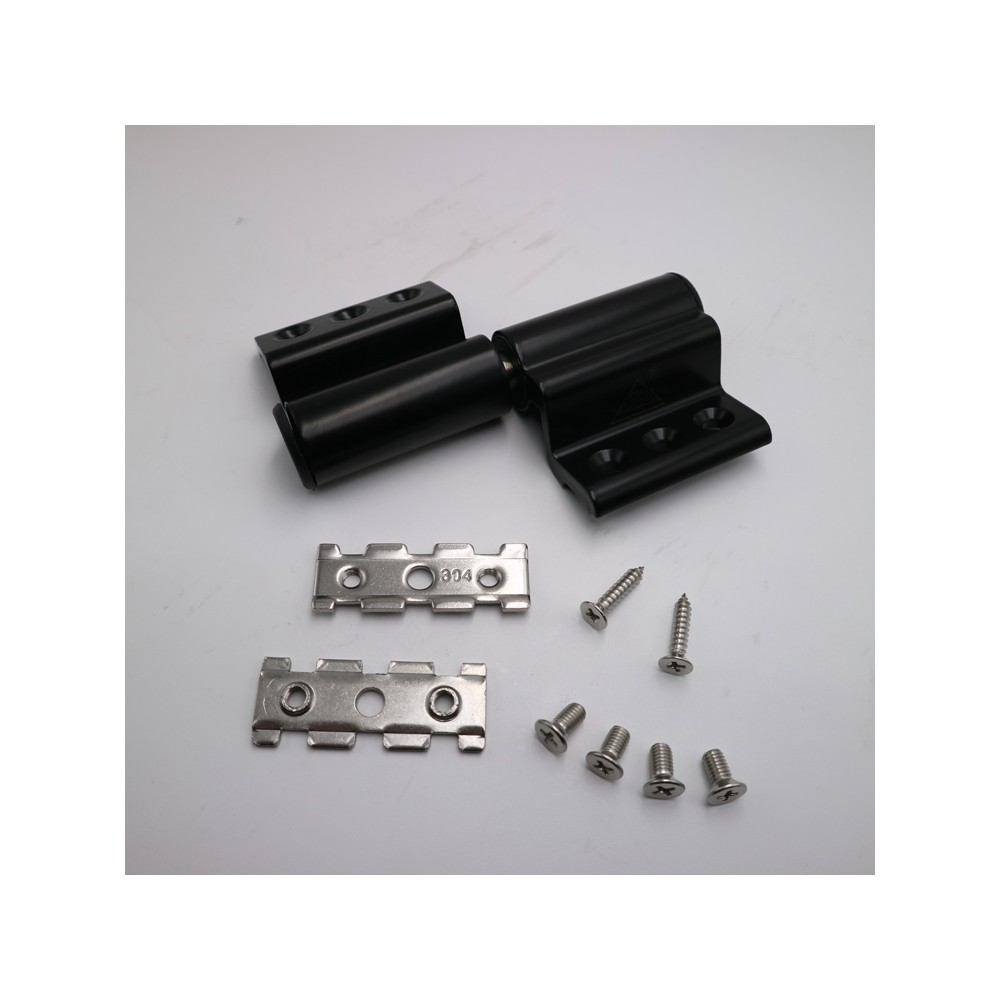

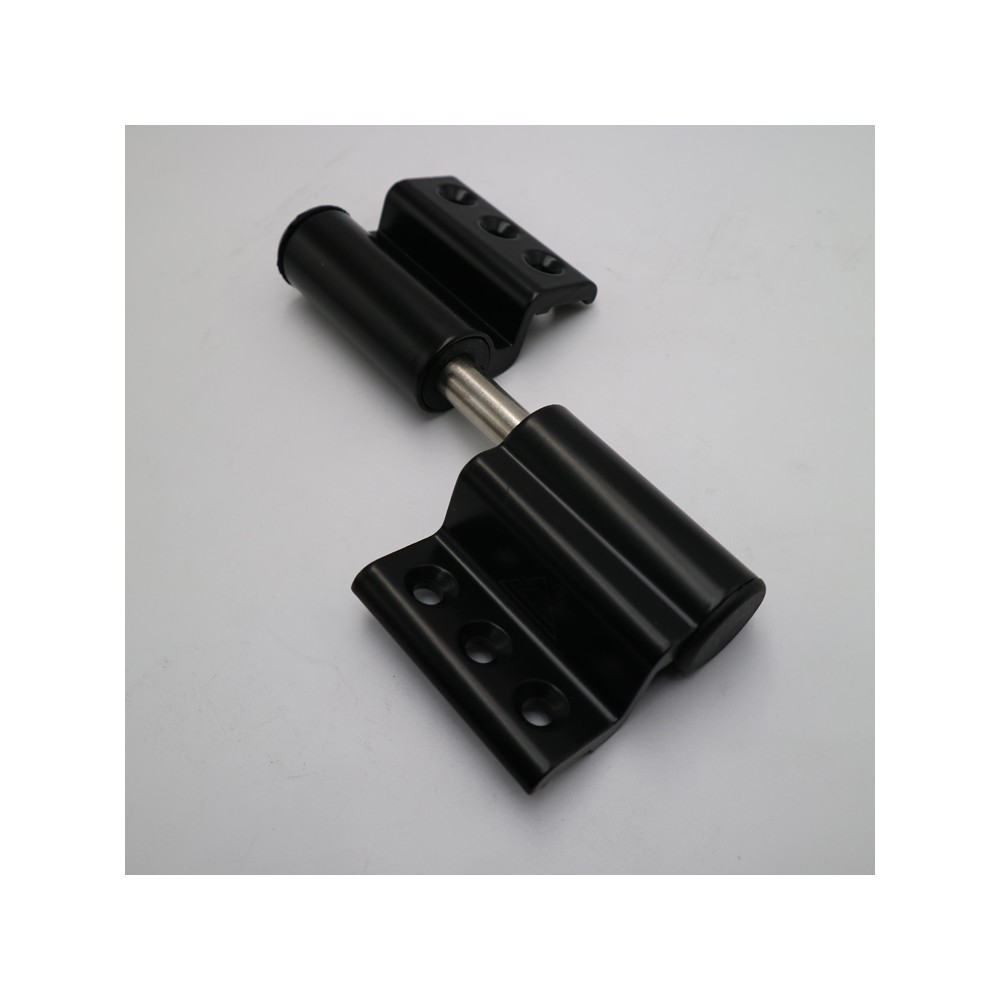

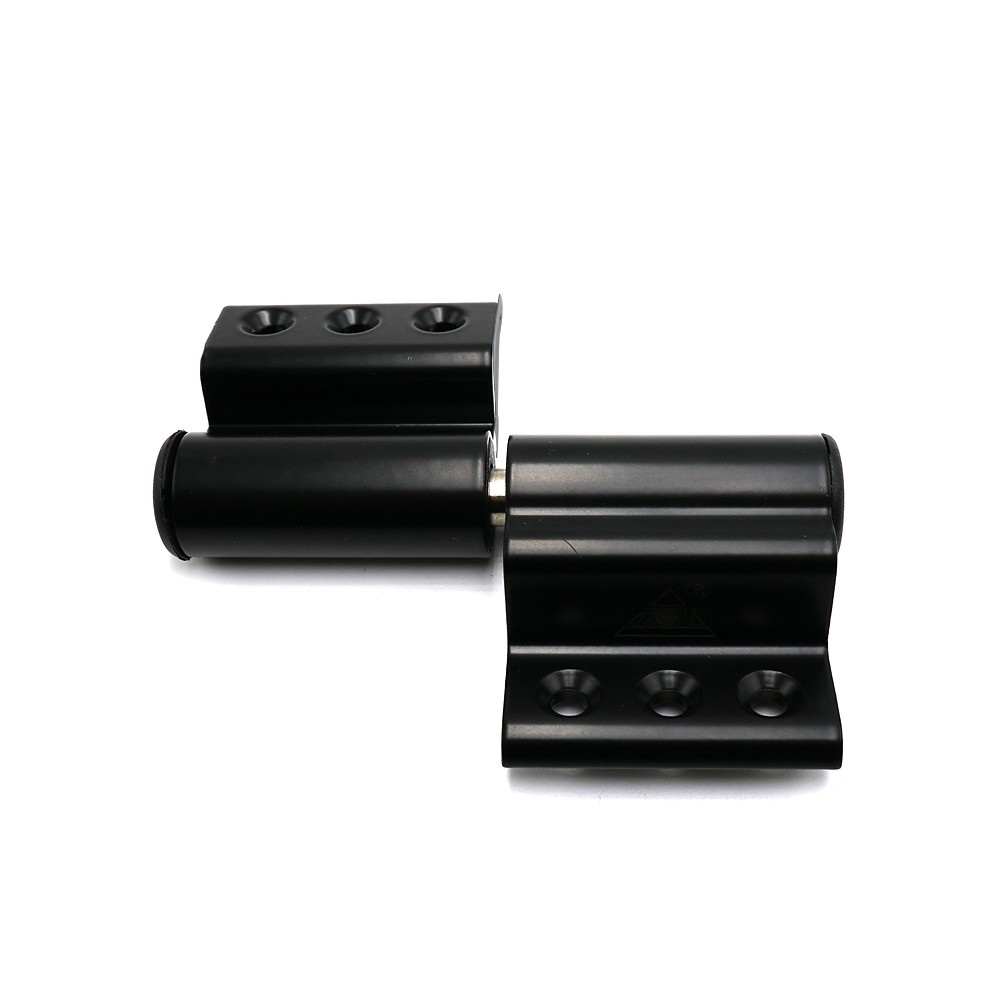

Aluminum Casement Window Butt Hinge is intended for casement window profiles that accept a compact butt-hinge connection between sash and frame. Leaf recess, barrel clearance and profile reinforcement determine whether the hinge can sit correctly without distorting the extrusion. The initial drawing review should therefore include sash and frame sections and leaf recess dimensions. Operating Match — Aluminum Casement Window Butt Hinge Its paired leaves turn around a shared barrel, defining the vertical rotation line for the opening sash. In this Window Hinges selection, the drawing should show sash and frame sections together with leaf recess dimensions. Product Configuration — H011 Use the following selectable and reference data when matching model H011 to the project. ModelH011 MaterialsAluminum alloy, stainless steel and nylon Reference Size110 × 55 mm SurfacePowder coating ColourBlack or custom colour ConfigurationProfile-mounted butt hinge Project Inputs — sash and frame…
