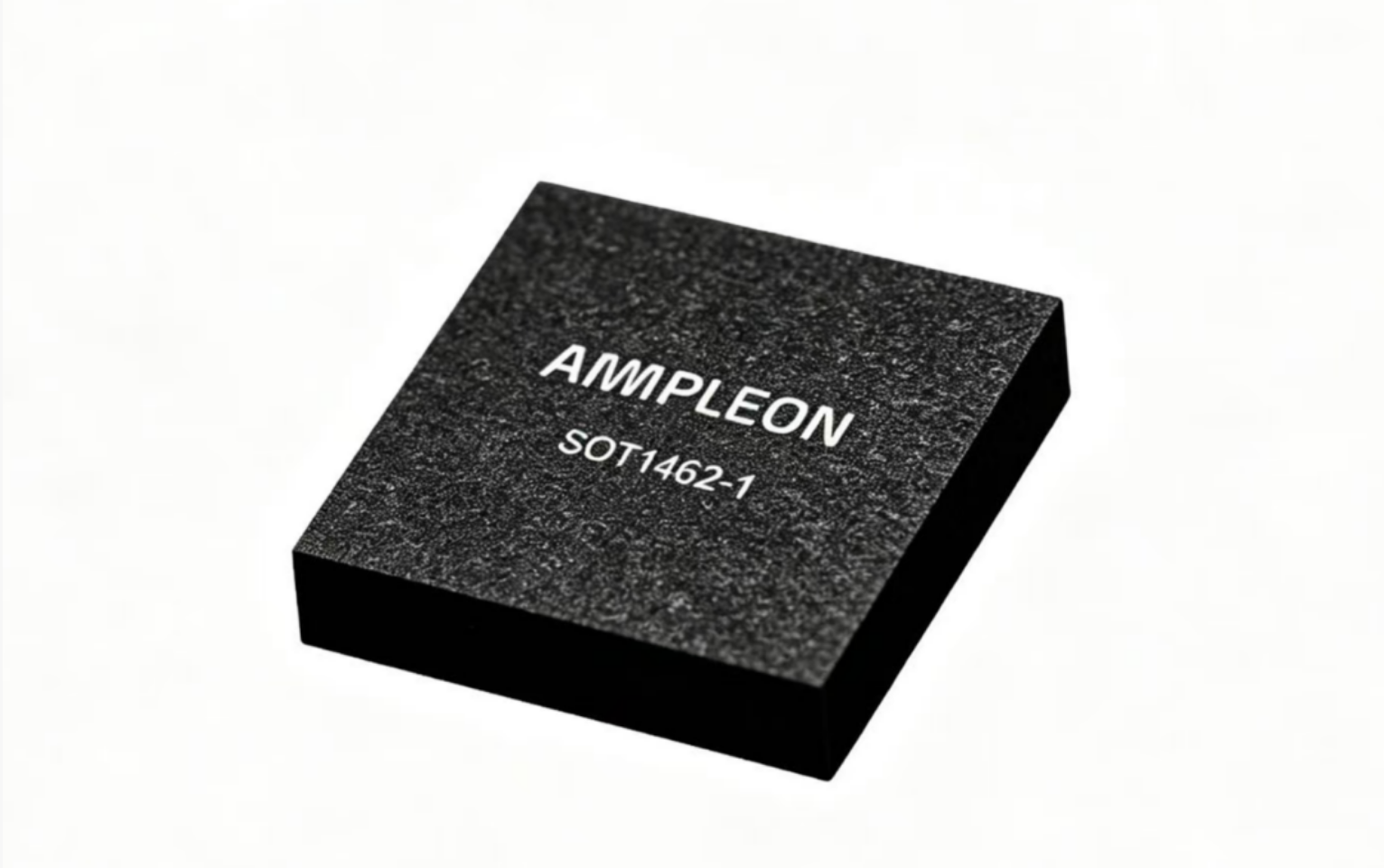

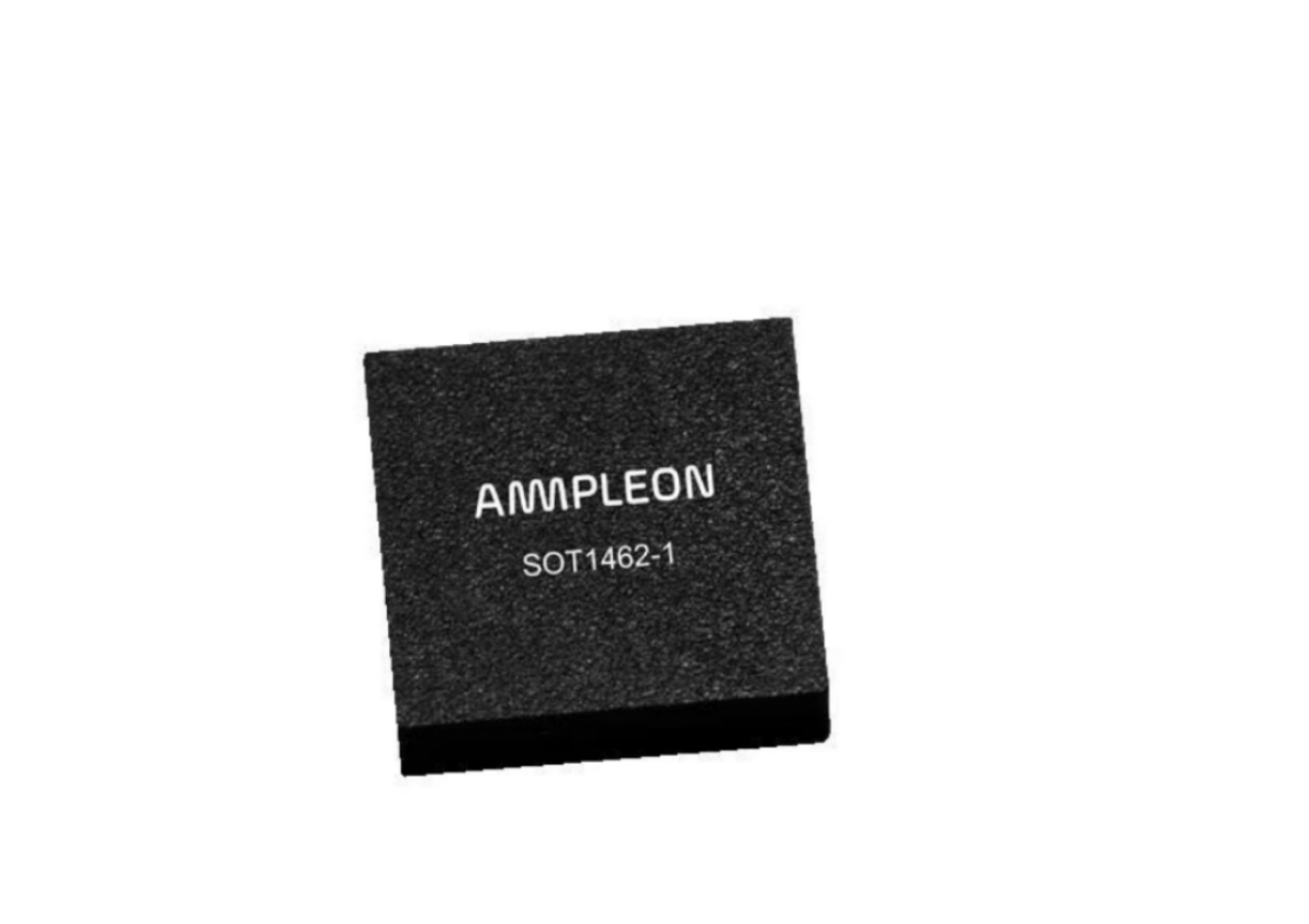

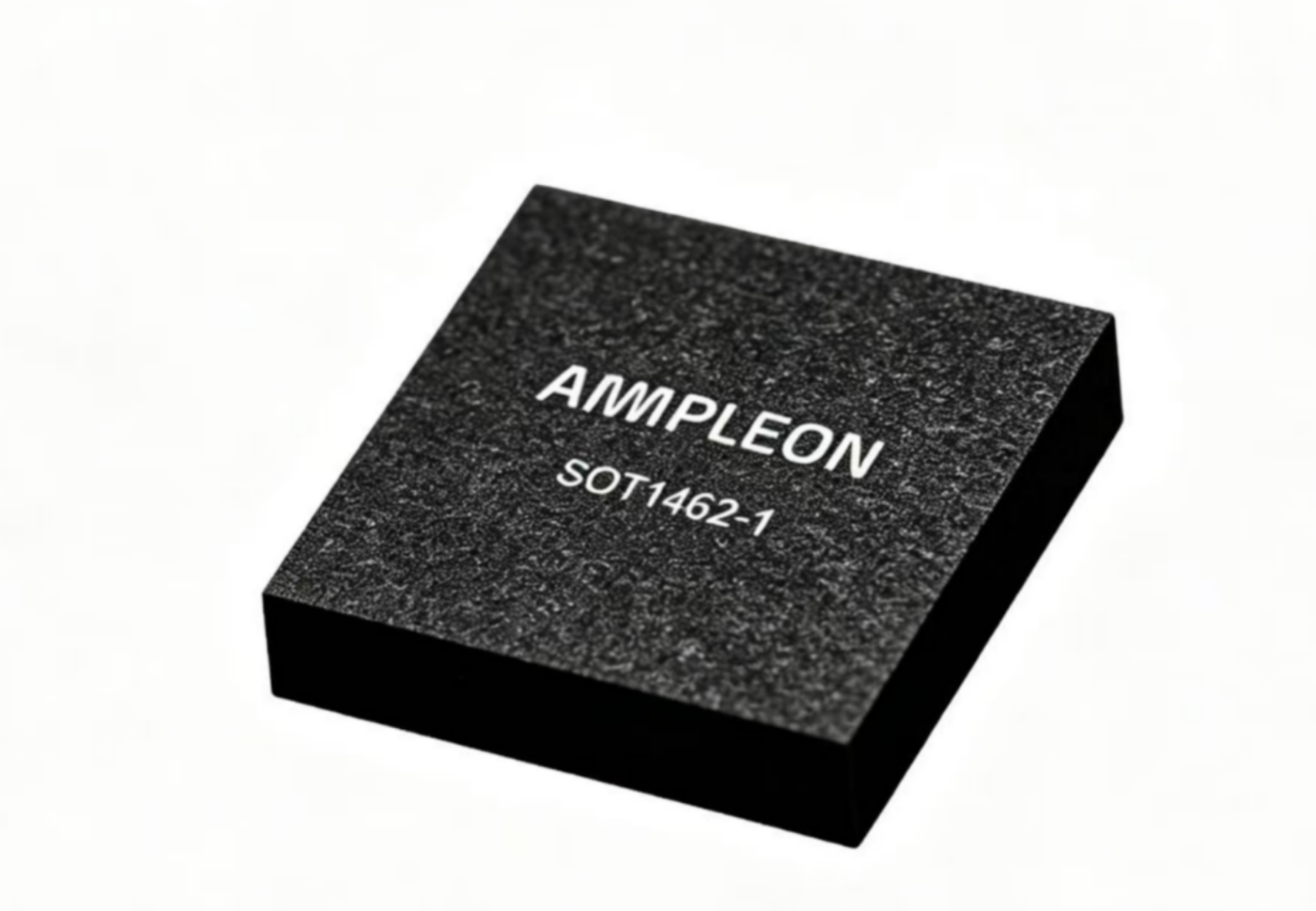

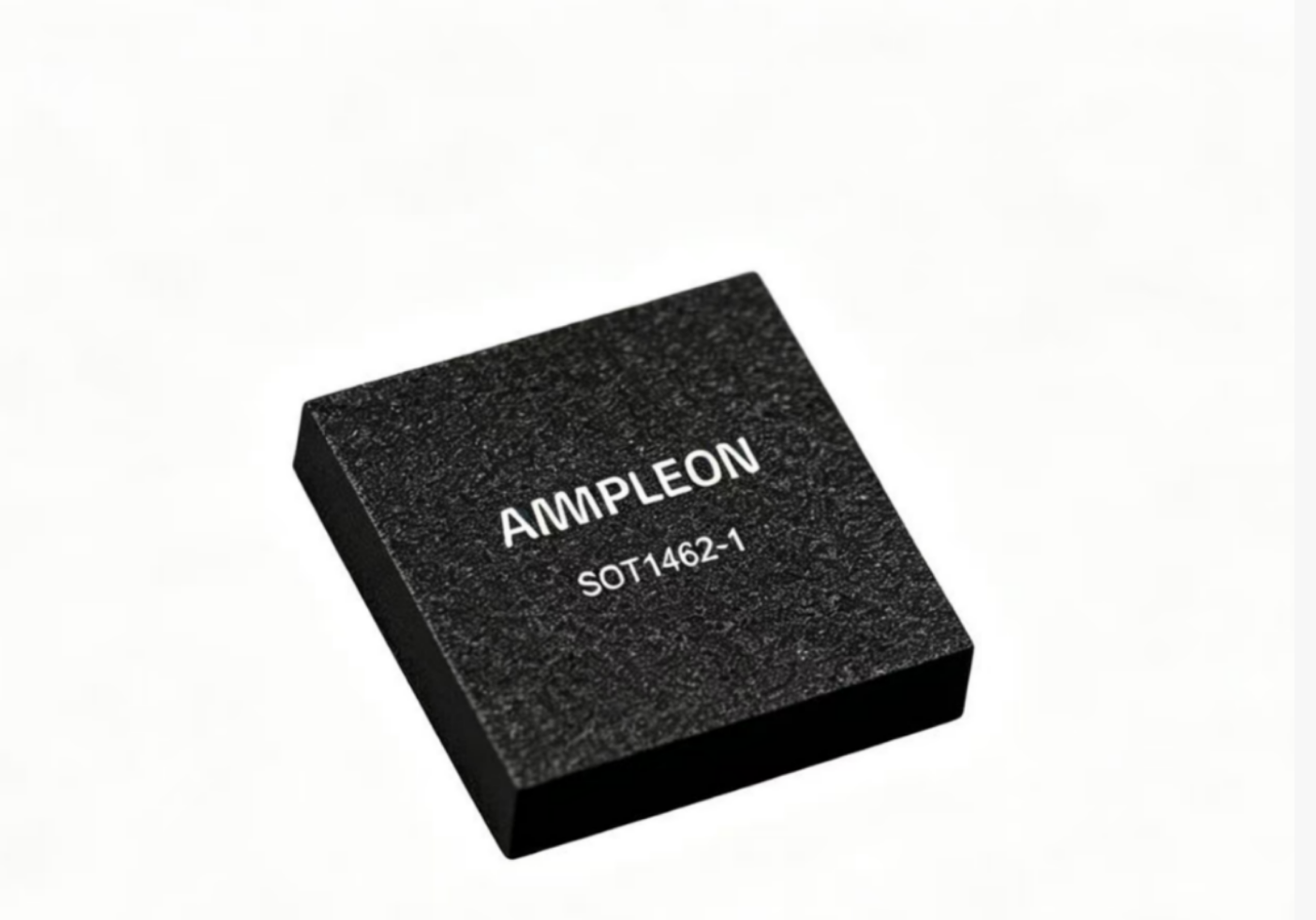

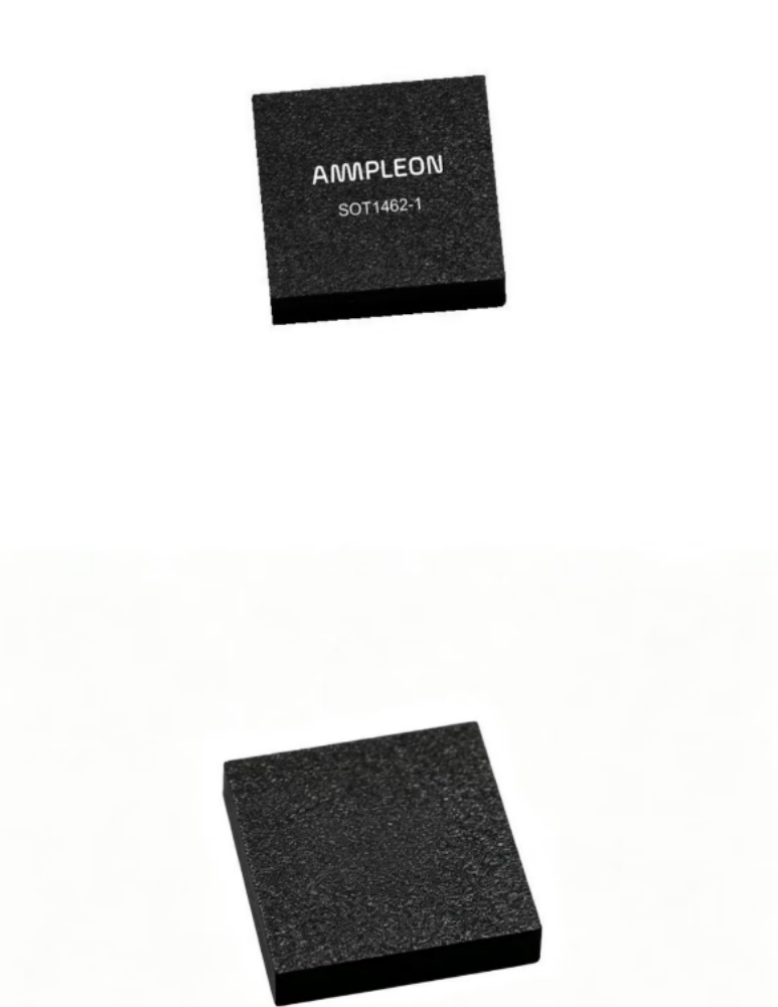

BLM9D1920-08AMZ Doherty LDMOS MMIC

2-Stage Doherty MMIC Frequency Range 1880to2025 Mhz 8w Average Output Power Gain 26.8 Db Supply Voltage 28 V 1. Product Overview   Part Number：BLM9D1920-08AMZ   Manufacturer：Ampleon   Device Type：GEN9 9th-generation LDMOS, 2-stage fully integrated Doherty MMIC Power Amplifier   Target Application：8W-class power amplifier for small cells, massive MIMO and RF repeaters in the 1880–2025 MHz band (5G n39/n40, 4G B39/B40)   This device integrates the carrier amplifier, peaking amplifier, input splitter, and output combiner in a single package, with 50Ω matched input and output, eliminating the need for external matching components, enabling plug-and-play operation and significantly shortening the RF design cycle.   2. Absolute Maximum Ratings     Symbol Parameter Value Unit VDS Drain-Source Voltage 65 V VGS Gate-Source Voltage -6 ~ +11 V Tstg Storage Temperature -55 ~ +125 °C Tj Maximum Junction Temperature 175 °C Tcase Maximum Case Temperature 125 °C   3. Key…
