BLP15M9S70G BLP15M9S70GZ RF MOSFET LDMOS

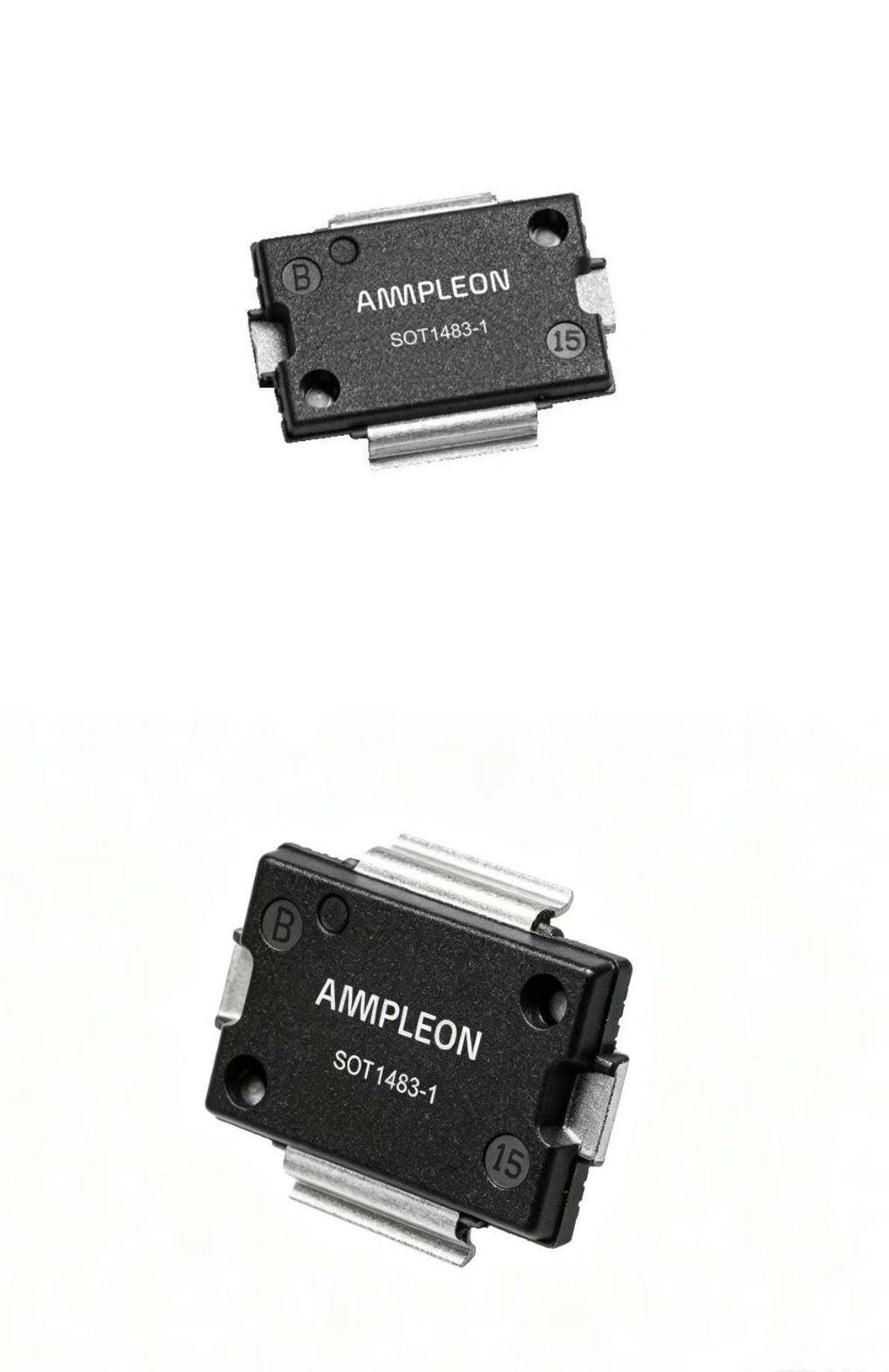

Supplied by Ampleon, the BLP15M9S70GZ is a multi-purpose LDMOS radio frequency power transistor with 70W output power. It adopts cutting-edge 9th-generation 32V high-voltage LDMOS manufacturing process.   Housed in mini-sized SOT-1483-1 and TO-270-2F-2 surface mounting packages, the device supports working frequencies from high-frequency band up to 1500MHz. It is well-suited for broadcast transmission equipment, ISM industrial scenarios and various communication network facilities.   Featuring excellent broadband performance, remarkable power conversion efficiency and reliable structural stability, the device acts as an ideal power amplification kernel for digital and analog signal transmitters alike.   Key Features   Broadband & High-Efficiency Performance: Typical output power of 70 W at 470 MHz, power gain up to 17.6 dB, and drain efficiency of 70% (VDS=32 V, IDQ=250 mA), delivering excellent energy efficiency. Exceptional Ruggedness: Withstands 20:1 full-band VSWR load mism…
