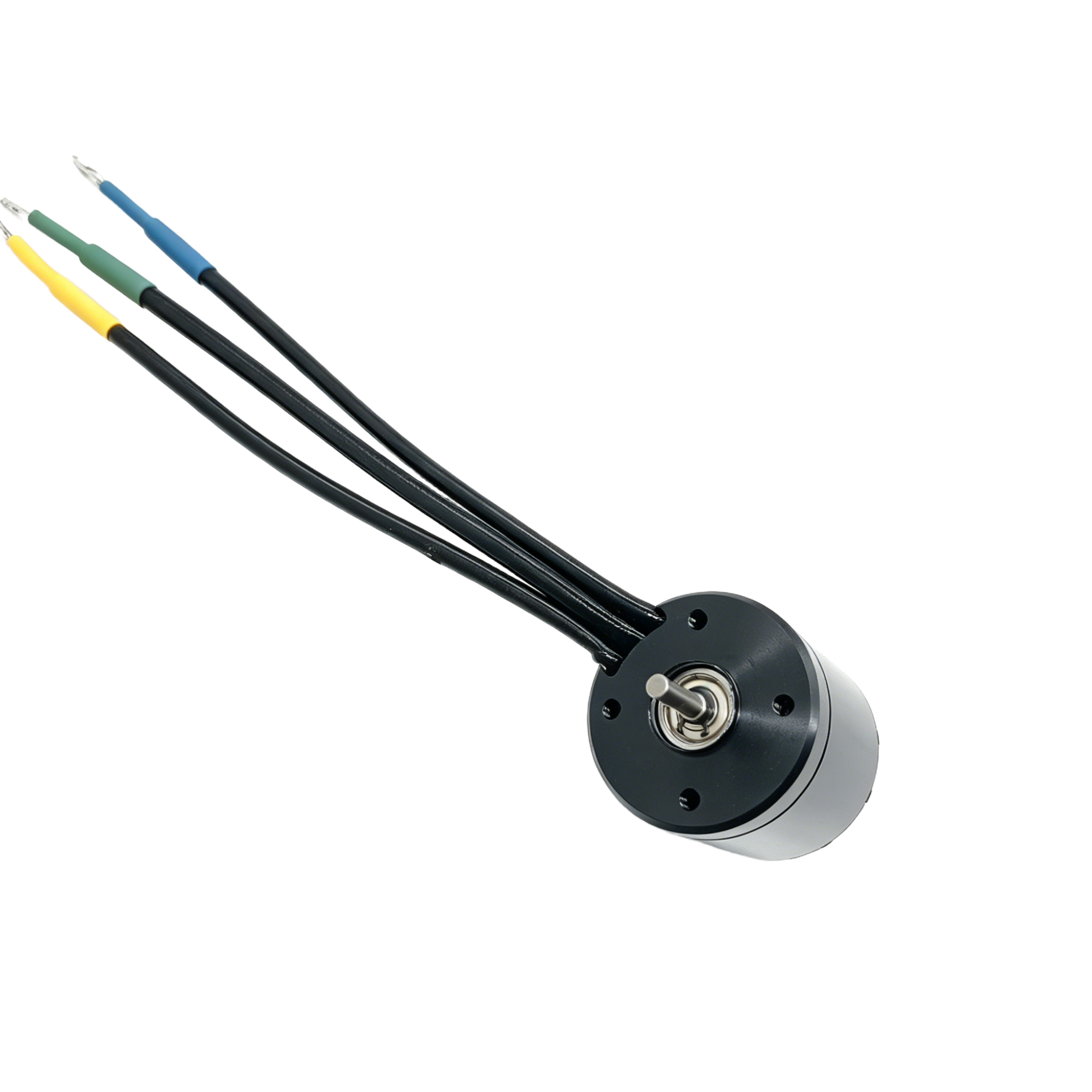

3439 Low Torque Ripple Outer Rotor Brushless Motor

3439 Low Torque Ripple Outer Rotor Brushless Motor Product Overview 3439 Low Torque Ripple Outer Rotor Brushless Motor is a well optimized External Rotor Motor manufactured by ITO MOTOR. This High Efficiency Motor is categorized as a HVAC Motor and Fan Motor, built as a Direct Drive Motor with low torque ripple performance. It works under 18 VDC rated voltage, suitable for equipment requiring quiet and stable rotary operation within wide ambient temperature range. Technical Specifications & Dimension Details This ITO MOTOR External Rotor Motor model ITO-B0034039-001 has rated voltage of 18 VDC, operating temperature range from -25℃ to 40℃. Its no-load speed reaches 18000 rpm with tolerance ±10%, maximum no-load current is 2A. The stall current is minimum 20A and minimum stall torque is 0.2N.m. Rotation direction supports CW or CCW. The maximum noise level is 60dBA, axial gap ranges from 0mm to 0.1mm, and the no-load service lifetime can reach 2000 hours. As a High Efficiency Mo…
