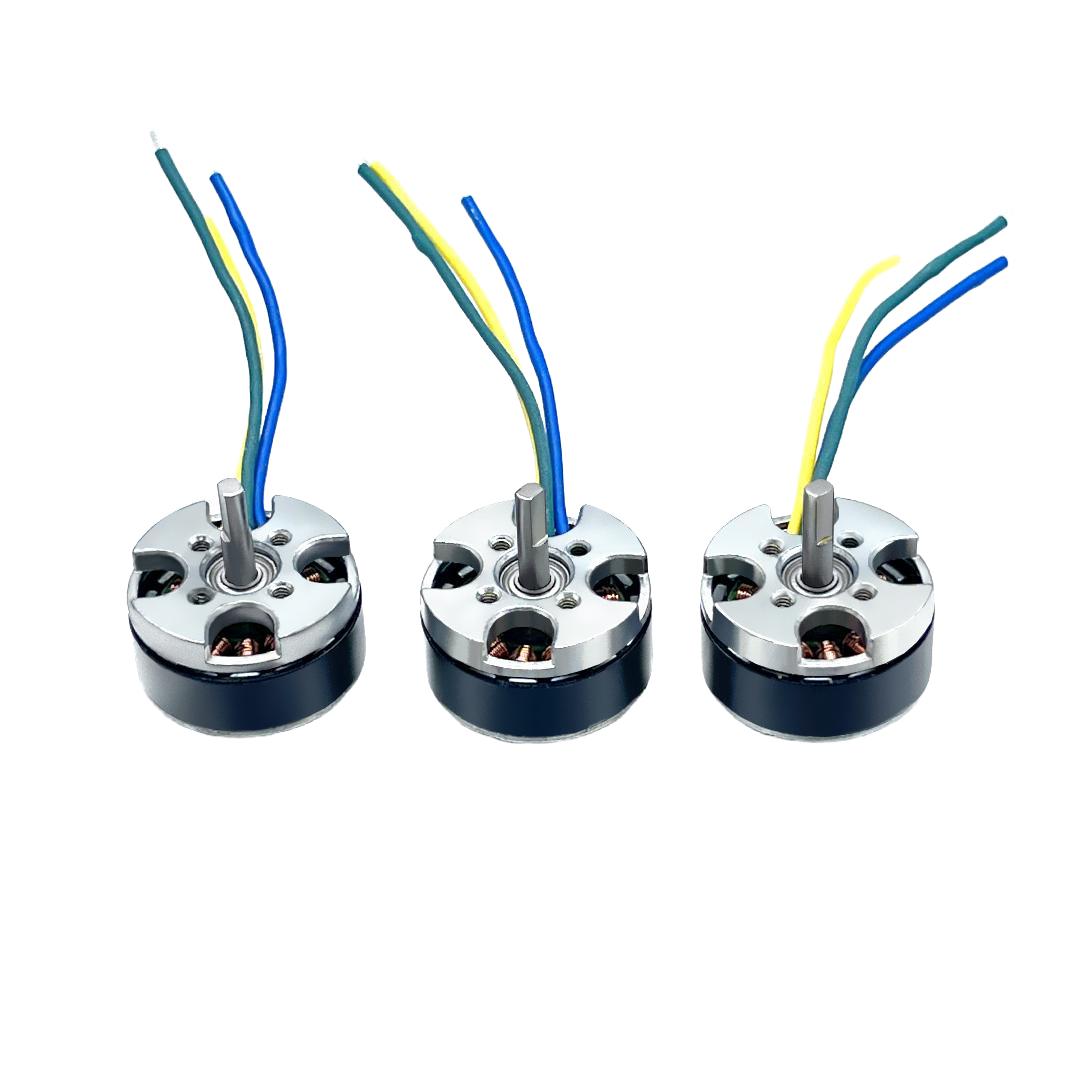

High Speed ITO 23BL07 External Rotor DC Motor

High Speed ITO 23BL07 External Rotor DC Motor Product Overview High Speed ITO 23BL07 External Rotor DC Motor is a compact high speed External Rotor Motor manufactured by ITO MOTOR. This High Efficiency Motor can serve as HVAC Motor and Fan Motor, adopting Direct Drive Motor design with small footprint and lightweight structure. It is well suited for unmanned aerial vehicles, air pumps and model aircraft, delivering stable high-speed rotary power in limited installation space. Technical Specifications & Dimension Details This ITO MOTOR External Rotor Motor model ITO-B023-001 works at rated voltage of 7.4 VDC, with operating temperature ranging from -25℃ to 40℃. Its no-load speed reaches 10500 rpm with tolerance ±10%, and the maximum no-load current is 0.5A. The rated speed is 9500 rpm ±10%, maximum rated current is 7A, and rated torque is 13 mN.m. The minimum stall current is 10A and minimum stall torque is 65 mN.m. Rotation direction supports CW or CCW. The maximum noise level…
