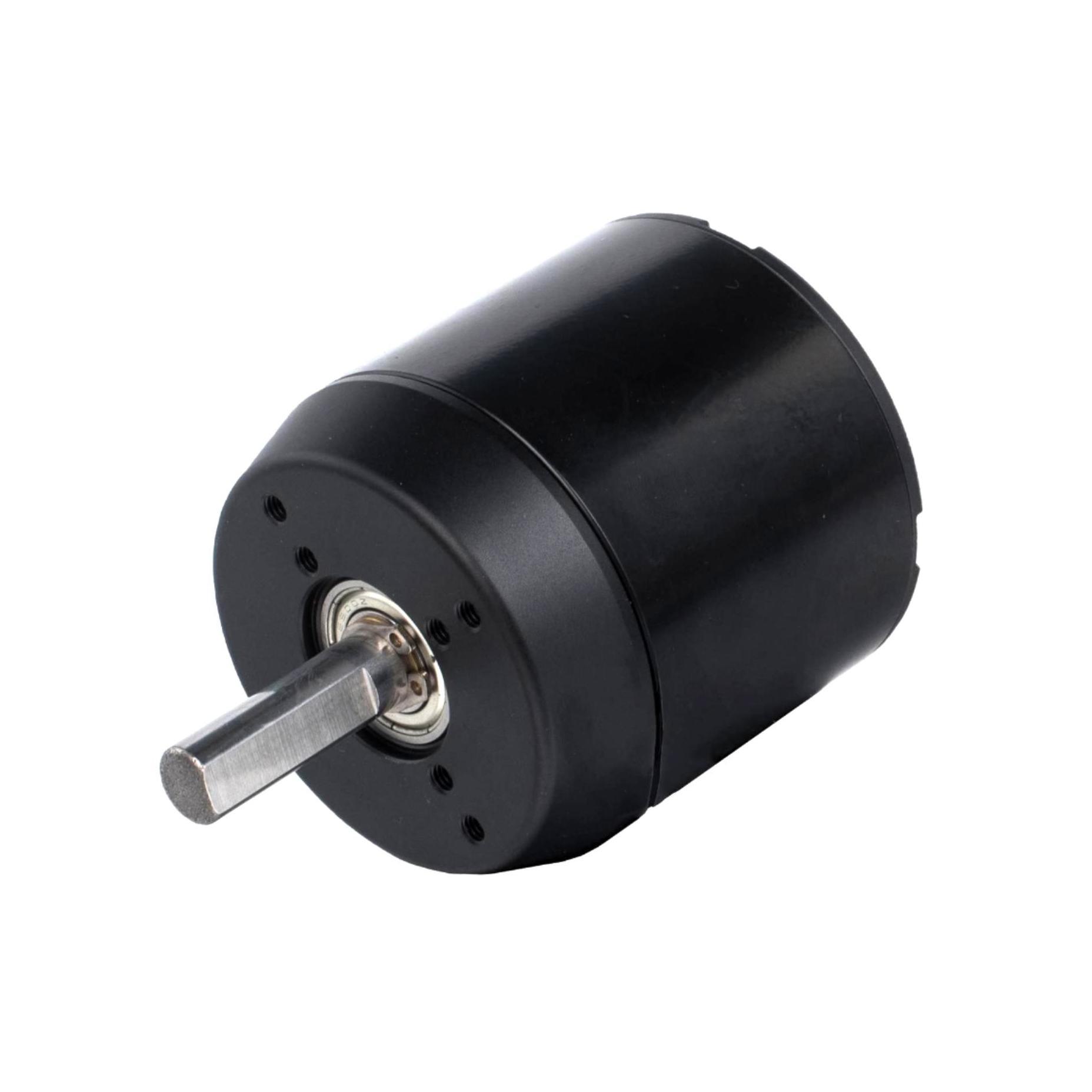

IBL 63 High Torque Outer Rotor Brushless Motor

IBL 63 High Torque Outer Rotor Brushless Motor Product Overview IBL 63 High Torque Outer Rotor Brushless Motor is a multi-specification External Rotor Motor manufactured by ITO MOTOR. This High Efficiency Motor can be applied as HVAC Motor and Fan Motor, adopting mature Direct Drive Motor design. The series provides multiple models with adjustable KV value, wide voltage range and high peak power, delivering stable high torque output for different rotary equipment requirements. Technical Parameter Introduction This ITO MOTOR External Rotor Motor includes four main models, ITO-BL6354, ITO-BL6364, ITO-BL6374 and ITO-BL6384. The rated voltage covers 24V to 48V, KV value ranges from 170 to 330. The no-load speed reaches 8300 r.p.m, and no-load current varies from 0.3A to 2.2A. Rated torque ranges from 1N.m to 2.5N.m, with consistent rated speed at 7400 r.p.m. The rated output power spans 700W to 1500W, and all models reach max efficiency of 83%. Max current and max output power increase…
